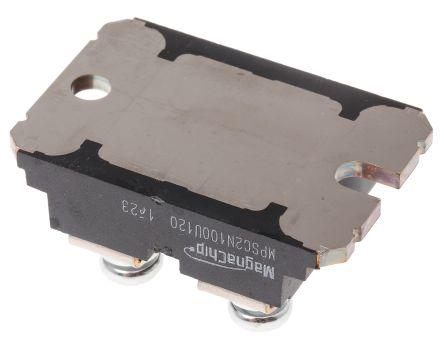

MagnaChip MPSC2N100U120 Dual Diode Module, Isolated, 1200V 200A, 110ns, 4-Pin SOT-227

MPSC2N100U120 MagnaChip  Dual Diode Module, Isolated, 1200V 200A, 110ns, 4-Pin SOT-227
MPSC2N100U120
MagnaChip

Product Information

Dimensions:
38.5 x 25.2 x 9.8mm
Mounting Type:
Panel Mount
Peak Reverse Recovery Time:
110ns
Maximum Continuous Forward Current:
200A
Maximum Operating Temperature:
+150 °C
Peak Non-Repetitive Forward Surge Current:
1.4kA
Maximum Forward Voltage Drop:
2.8V
Height:
9.8mm
Peak Reverse Current:
1mA
Width:
25.2mm
Length:
38.5mm
Package Type:
SOT-227
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
Diode Type:
Silicon Junction
Diode Configuration:
Isolated
Pin Count:
4
Peak Reverse Repetitive Voltage:
1200V
RoHs Compliant
Checking for live stock

This is Dual Diode Module Isolated 1200V 200A 110ns 4-Pin SOT-227 manufactured by MagnaChip. The manufacturer part number is MPSC2N100U120. The given dimensions of the product include 38.5 x 25.2 x 9.8mm. The product is available in panel mount configuration. Moreover, it has a peak reverse recovery time about 110ns . Furthermore, its maximum continuous forward current constitutes 200a. It has a maximum operating temperature of +150 °c. Moreover, a bespoke product has 1.4ka peak non-repetitive forward surge current. It features 2.8v of maximum forward voltage drop. In addition, the height is 9.8mm. It has a typical 1ma peak reverse current . Furthermore, the product is 25.2mm wide. Its accurate length is 38.5mm. The package is a sort of sot-227. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It is designed with a silicon junction diode. The diode features a isolated configuration. It contains 4 pins. While having the peak reverse repetitive 1200v.

pdf icon
MPSC2N100U120, 1200V FRD (Fast Recovery Diode) Module(Technical Reference)
