Dimensions:
10.71 x 4.93 x 16.13mm
Maximum Continuous Drain Current:
10 A
Transistor Material:
Si
Width:
4.93mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
4V
Maximum Drain Source Resistance:
700 mΩ
Package Type:
TO-220F
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
32 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1360 pF @ 25 V
Length:
10.71mm
Pin Count:
3
Forward Transconductance:
9S
Typical Turn-Off Delay Time:
116 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
48 W
Maximum Gate Source Voltage:
±30 V
Height:
16.13mm
Typical Turn-On Delay Time:
53 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.4V

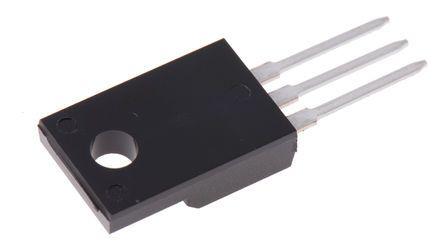

This is N-channel MOSFET 10 A 600 V 3-Pin TO-220F manufactured by MagnaChip. The manufacturer part number is MDF10N60GTH. The given dimensions of the product include 10.71 x 4.93 x 16.13mm. While 10 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.93mm wide. The product offers single transistor configuration. It has a maximum of 600 v drain source voltage. The product carries 4v of maximum gate threshold voltage. It provides up to 700 mω maximum drain source resistance. The package is a sort of to-220f. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 32 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1360 pf @ 25 v . Its accurate length is 10.71mm. It contains 3 pins. The forward transconductance is 9s . Whereas, its typical turn-off delay time is about 116 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 48 w maximum power dissipation. It features a maximum gate source voltage of ±30 v. In addition, the height is 16.13mm. In addition, it has a typical 53 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.4v .
