Name: VS-GT105NA120UX, Vishay
Brand: Vishay
SKU: ET13883705
Price: 34.46 GBP
Availability: PreOrder

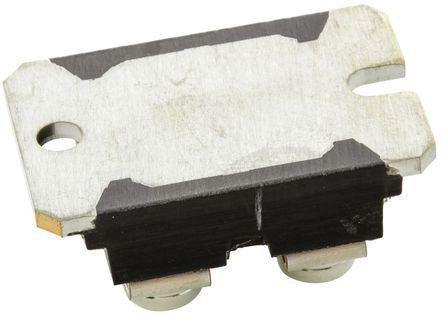

VS-GT105NA120UX Vishay , SOT-227 IGBT Module, 134 A max, 1200 V, Panel Mount

(0)

Product Information

Configuration:

Single

Dimensions:

38.3 x 25.7 x 12.3mm

Mounting Type:

Panel Mount

Maximum Power Dissipation:

463 W

Maximum Continuous Collector Current:

134 A

Maximum Collector Emitter Voltage:

1200 V

Height:

12.3mm

Width:

25.7mm

Length:

38.3mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

SOT-227

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is SOT-227 IGBT Module 134 A max 1200 V Panel Mount manufactured by Vishay. The manufacturer part number is VS-GT105NA120UX. The product is available in single configuration. The given dimensions of the product include 38.3 x 25.7 x 12.3mm. The product is available in panel mount configuration. Provides up to 463 w maximum power dissipation. The product has a maximum 134 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 12.3mm. Furthermore, the product is 25.7mm wide. Its accurate length is 38.3mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of sot-227. Whereas, the minimum operating temperature of the product is -40 °c. It has about 30khz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration.
