Maximum Temperature:
+70°C
AC or DC Output Voltage:
Dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
Ac
Width:
40mm
MTBF:
268Kh
Maximum Output Voltage:
24V dc
Electrical Phase:
1
Protection Features:
Over Temperature Protection, Over Voltage Protection, Overload Protection, Short Circuit Protection
Type:
Switch Mode
Holdup Time:
10 (230 V ac) ms, 50 (400 V ac) ms
Standards Met:
Compliance to EN 55011 (CISPR11), Compliance to EN 61000-4-2, EN 50082-2, EN 55022 (CISPR22), EN 61000-6-2, EN 61204-3, EN 61204-3 Class B, ENV 50204, Heavy Industry Level Criteria A, IEC 60950-1 Compliant, UL 508 Approved, 3, 4, 5, 6, 8, 11
Maximum Input Current:
1.2A
Input Frequency Range:
47 → 63Hz
Efficiency:
91%
Input Voltage:
180 → 550V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
24 → 29V
Line Regulation:
±0.5%
Ripple And Noise:
120mV Pk-Pk
Range:
PSW
Minimum Output Voltage:
24V dc
Special Features:
Built-In DC OK Relay Contact, Cooling by Free Air Convection, 100% Full Load Burn-In Test
Input Electrical Phase:
Single Phase, Two Phase
Power Signal Conversion Type:
AC/DC-DC
Mounting Type:
DIN Rail
Output Current:
5 A
Application:
Industrial
Series:
PSW-120
Depth:
113.5mm
Height:
125.2mm
Weight:
0.65kg
Output Voltage:
24 V dc
Power Rating:
120W
Maximum Input Voltage:
550V ac
Minimum Input Voltage:
180V ac

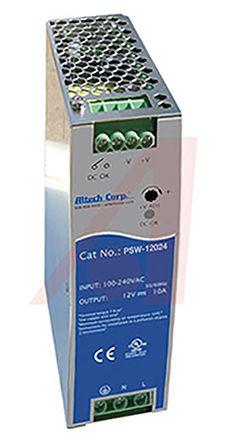

This is PSW 120W Switch Mode DIN Rail Power Supply 24V dc/ 5A manufactured by Altech. The manufacturer part number is PSW-12024. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac input voltage. Furthermore, the product is 40mm wide. The MTBF values include 268kh. Its output voltage (maximum) includes 24v dc. Its electrical phase configuration includes 1. It provides robust protection features, such as over temperature protection, over voltage protection, overload protection, short circuit protection. It comes in switch mode configuration. Additionally, its holdup time is about 10 (230 v ac) ms, 50 (400 v ac) ms . The product complies with all safety standards, such as compliance to en 55011 (cispr11), compliance to en 61000-4-2, en 50082-2, en 55022 (cispr22), en 61000-6-2, en 61204-3, en 61204-3 class b, env 50204, heavy industry level criteria a, iec 60950-1 compliant, ul 508 approved, 3, 4, 5, 6, 8, 11. While its maximum input current includes 1.2a. It has 47 → 63hz input frequency range . It is a highly efficient product with an 91% of high efficiency. Its input voltage is 180 → 550v ac. Additionally, the product is supplied with 1 outputs. It has 24 → 29v of output voltage adjustment range. Has a line regulation of ±0.5%. Carries 120mv pk-pk ripple and noise. It features psw range. The product features 24v dc minimum output voltage. The product also provides special features, such as built-in dc ok relay contact, cooling by free air convection, 100% full load burn-in test. It has a single phase, two phase input electrical phase . In addition, it has ac/dc-dc type power signal conversion . The product is available in din rail configuration. It carries 5 a output current. Applications Information involves industrial. The product psw-120, is a highly preferred choice for users. The product comes in 113.5mm depth. In addition, the height is 125.2mm. The typical product's weight is 0.65kg. Features a 24 v dc output voltage. Feature 120w of power rating. 550v ac is the maximum voltage of the bespoke product. The product has 180v ac of minimum input voltage.
