Category:
Power MOSFET
Dimensions:
10.36 x 4.57 x 9.45mm
Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Width:
4.57mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Maximum Gate Threshold Voltage:
3.5V
Maximum Drain Source Resistance:
7.7 mΩ

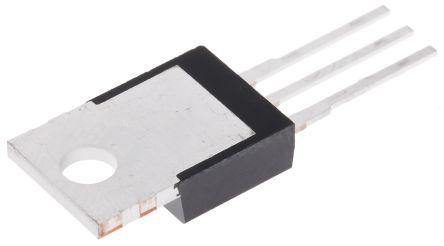

Package Type:
TO-220
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
88 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
6320 pF @ 50 V
Length:
10.36mm
Pin Count:
3
Typical Turn-Off Delay Time:
48 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
214 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
±20 V
Height:
9.45mm
Typical Turn-On Delay Time:
27 ns
Minimum Operating Temperature:
-55 °C
