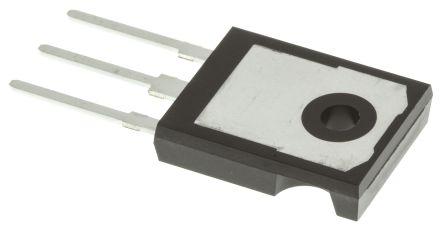

HGTG20N60A4D Fairchild IGBT, 70 A 600 V, 3-Pin TO-247

Enrgtech Part No: ET13860086
|
Manufacturer Part No:
HGTG20N60A4D
|
Manufacturer: Fairchild Semiconductor

HGTG20N60A4D Fairchild IGBT, 70 A 600 V, 3-Pin TO-247

HGTG20N60A4D

HGTG20N60A4D Fairchild IGBT, 70 A 600 V, 3-Pin TO-247

Fairchild Semiconductor

(0)

Product Information

Dimensions:

15.87 x 4.82 x 20.82mm

Mounting Type:

Through Hole

Maximum Continuous Collector Current:

70 A

Maximum Collector Emitter Voltage:

600 V

Height:

20.82mm

Width:

4.82mm

Length:

15.87mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

TO-247

Minimum Operating Temperature:

-55 °C

Channel Type:

N

Maximum Operating Temperature:

+150 °C

RoHs Compliant

Checking for live stock

This is Fairchild IGBT 70 A 600 V 3-Pin TO-247 manufactured by Fairchild Semiconductor. The manufacturer part number is HGTG20N60A4D. The given dimensions of the product include 15.87 x 4.82 x 20.82mm. The product is available in through hole configuration. The product has a maximum 70 a continuous collector current . Whereas features a 600 v of collector emitter voltage (max). In addition, the height is 20.82mm. Furthermore, the product is 4.82mm wide. Its accurate length is 15.87mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of to-247. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

Trans IGBT Chip N-CH 600V 70A 3-TO-247(Technical Reference)
