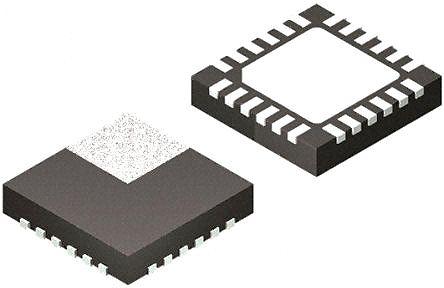

Analog Devices Hittite HMC505LP4E, Voltage Controlled Oscillator, 6.8 → 7.4 GHz 2.75 → 3.25 V, 24-Pin QFN

HMC505LP4E Analog Devices Hittite , Voltage Controlled Oscillator, 6.8 → 7.4 GHz 2.75 → 3.25 V, 24-Pin QFN
Analog Devices

Product Information

Dimensions:
4.1 x 4.1 x 1mm
Mounting Type:
Surface Mount
Series:
Hittite
Minimum Operating Supply Voltage:
2.75 V
Height:
1mm
Width:
4.1mm
Length:
4.1mm
Package Type:
QFN
Output Frequency:
6.8 → 7.4 GHz
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.25 V
Control Parameter:
Temperature
Tuning Voltage:
1 → 11V
Maximum Operating Temperature:
+85 °C
Pin Count:
24
RoHs Compliant
Checking for live stock

This is Hittite Voltage Controlled Oscillator 6.8 → 7.4 GHz 2.75 → 3.25 V 24-Pin QFN manufactured by Analog Devices. The manufacturer part number is HMC505LP4E. The given dimensions of the product include 4.1 x 4.1 x 1mm. The product is available in surface mount configuration. The product hittite, is a highly preferred choice for users. While its minimum operating supply voltage is 2.75 v. In addition, the height is 1mm. Furthermore, the product is 4.1mm wide. Its accurate length is 4.1mm. The package is a sort of qfn. This product has an output frequency range of 6.8 → 7.4 ghz. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.25 v maximum operating supply voltage. It offers control parameter from temperature . 1 → 11v is the tuning voltage required . It has a maximum operating temperature of +85 °c. It contains 24 pins.

pdf icon
HMC505LP4 / 505LP4E, MMIC VCO w/ BUFFER AMPLIFIER, 6.8 - 7.4 GHz(Technical Reference)
