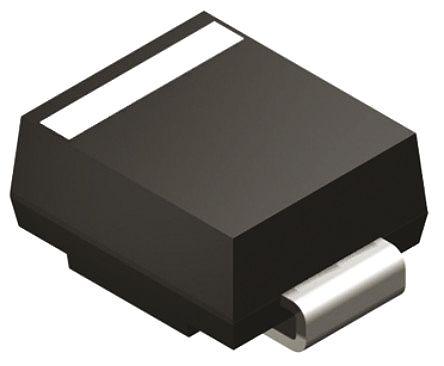

Diodes Inc S3AB-13-F SMT Diode, 50V 3A, 2-Pin DO-214AA

S3AB-13-F Diodes Inc  SMT Diode, 50V 3A, 2-Pin DO-214AA
DiodesZetex

Product Information

Dimensions:
4.57 x 3.94 x 2.3mm
Mounting Type:
Surface Mount
Maximum Continuous Forward Current:
3A
Maximum Operating Temperature:
+150 °C
Peak Non-Repetitive Forward Surge Current:
100A
Maximum Forward Voltage Drop:
1.15V
Height:
4.57mm
Peak Reverse Current:
250µA
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Diode Type:
Silicon Junction
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
50V
RoHs Compliant
Checking for live stock

This is Diodes Inc SMT Diode 50V 3A 2-Pin DO-214AA manufactured by DiodesZetex. The manufacturer part number is S3AB-13-F. The given dimensions of the product include 4.57 x 3.94 x 2.3mm. The product is available in surface mount configuration. Furthermore, its maximum continuous forward current constitutes 3a. It has a maximum operating temperature of +150 °c. Moreover, a bespoke product has 100a peak non-repetitive forward surge current. It features 1.15v of maximum forward voltage drop. In addition, the height is 4.57mm. It has a typical 250µa peak reverse current . Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is designed with a silicon junction diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 50v.

pdf icon
3.0A Surface Mount Glass Passivated Rectifier Datasheet(Technical Reference)
