Category:
Power MOSFET
Dimensions:
10.65 x 4.85 x 16.15mm
Maximum Continuous Drain Current:
43 A
Transistor Material:
Si
Width:
4.85mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
4V
Package Type:
TO-220FP
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
36 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2900 pF @ 30 V
Length:
10.65mm
Pin Count:
3
Forward Transconductance:
51S
Typical Turn-Off Delay Time:
20 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
33 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
±20 V
Height:
16.15mm
Typical Turn-On Delay Time:
15 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
9.3 mΩ

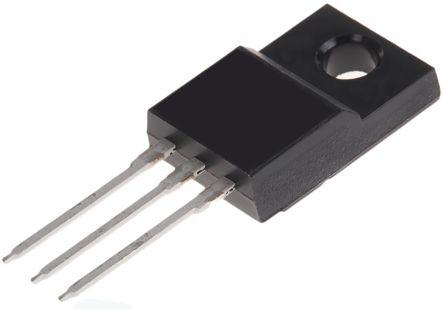

This is N-channel MOSFET 43 A 60 V OptiMOS 3 3-Pin TO-220FP manufactured by Infineon. The manufacturer part number is IPA093N06N3 G. It is of power mosfet category . The given dimensions of the product include 10.65 x 4.85 x 16.15mm. While 43 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.85mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 4v of maximum gate threshold voltage. The package is a sort of to-220fp. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 36 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 2900 pf @ 30 v . Its accurate length is 10.65mm. It contains 3 pins. The forward transconductance is 51s . Whereas, its typical turn-off delay time is about 20 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 33 w maximum power dissipation. The product optimos 3, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 16.15mm. In addition, it has a typical 15 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 9.3 mω maximum drain source resistance.
