Dimensions:
5 x 4.1 x 1.1mm
Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Width:
4.1mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
25 V
Maximum Gate Threshold Voltage:
1.95V

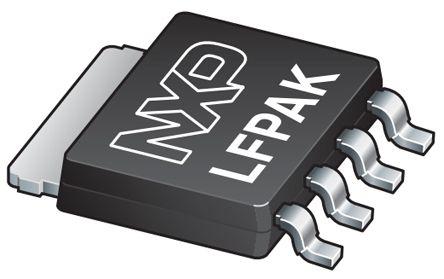

Package Type:
SOT-669
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.05V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
110 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
6775 pF @ 12 V
Length:
5mm
Pin Count:
4
Typical Turn-Off Delay Time:
103.5 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
272 W
Maximum Gate Source Voltage:
±20 V
Height:
1.1mm
Typical Turn-On Delay Time:
42.5 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.25 mΩ
