Category:
Power MOSFET
Dimensions:
5.1 x 6.25 x 1.05mm
Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Width:
6.25mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
75 V

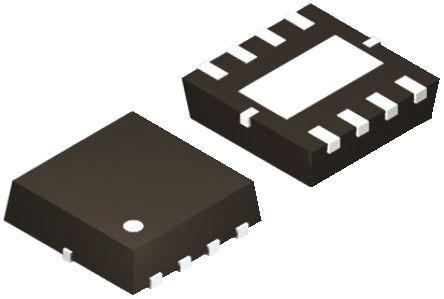

Package Type:
Power 56
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
76.8 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
4550 pF @ 37.5 V
Length:
5.1mm
Pin Count:
8
Typical Turn-Off Delay Time:
55.3 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
104.2 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
1.05mm
Typical Turn-On Delay Time:
34.9 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
3.7 mΩ
