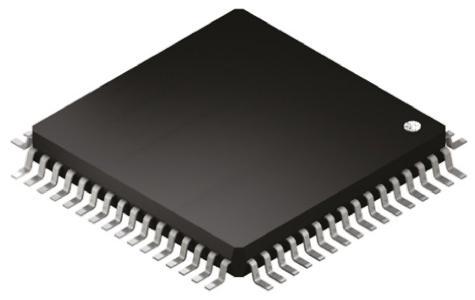

EXAR Quad-Channel, LQFP UART IrDA, RS232, RS422, RS485 1.5Mbit/s, 2.97 → 5.5 V, 64-Pin ST16C654DIQ64-F

ST16C654DIQ64-F EXAR Quad-Channel, LQFP UART IrDA, RS232, RS422, RS485 1.5Mbit/s, 2.97 → 5.5 V, 64-Pin
MaxLinear

Product Information

Dimensions:
10 x 10 x 1.4mm
Mounting Type:
Surface Mount
Receive FIFO:
64B
Number of Channels per Chip:
4
Typical Operating Supply Voltage:
2.97 → 5.5 V
Package Type:
LQFP
Minimum Operating Temperature:
-40 °C
Transmit FIFO:
64B
Standard Supported:
IrDA, RS232, RS422, RS485
Maximum Operating Temperature:
+85 °C
Pin Count:
64
Maximum Data Rate:
1.5Mbit/s
RoHs Compliant
Checking for live stock

This is EXAR Quad-Channel LQFP UART IrDA RS232 RS422 RS485 1.5Mbit/s 2.97 → 5.5 V 64-Pin manufactured by MaxLinear. The manufacturer part number is ST16C654DIQ64-F. The given dimensions of the product include 10 x 10 x 1.4mm. The product is available in surface mount configuration. Additionally, it has 64b receive FIFO . It comprises 4 channels per chip. It has 2.97 → 5.5 v of typical operating supply voltage. The package is a sort of lqfp. Whereas, the minimum operating temperature of the product is -40 °c. With 64b transmit FIFO . It is irda, rs232, rs422, rs485 standard supported . It has a maximum operating temperature of +85 °c. It contains 64 pins. Furthermore, it has a maximum data rate of 1.5mbit/s .

pdf icon
ST16C654/654D, 2.97V to 5.5V Quad UART with 64-Byte FIFO(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
