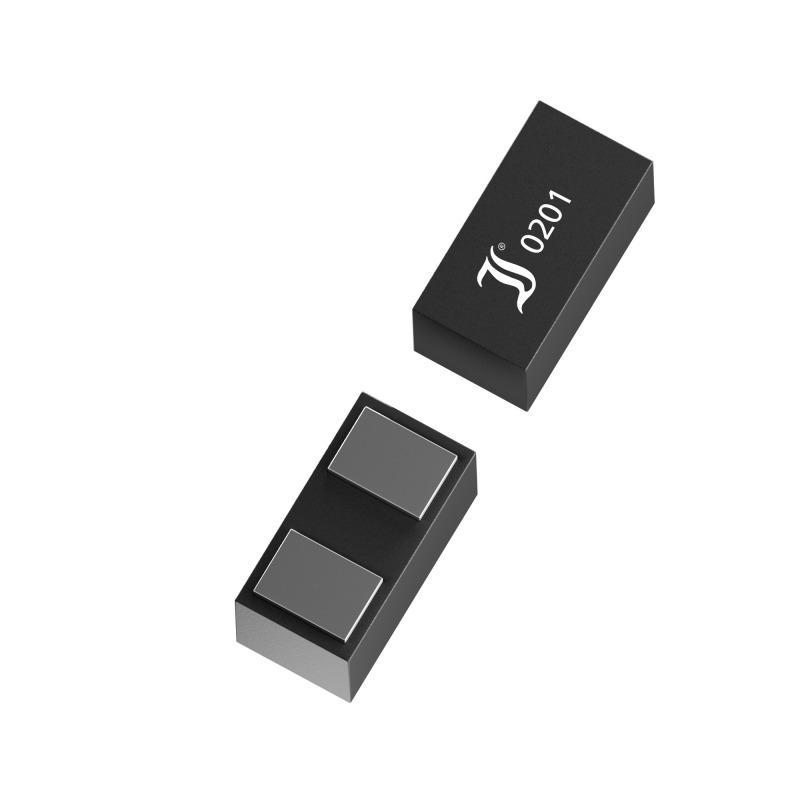

Diotec Semiconductor AG ESD03B3Z

ESD03B3Z Diotec Semiconductor AG
Diotec Semiconductor AG

Product Information

Voltage - Clamping (Max) @ Ipp:
9.5V
HTSUS:
8541.10.0000
RoHS Status:
RoHS Compliant
Operating Temperature:
-50°C ~ 125°C (TJ)
Package / Case:
0201 (0603 Metric)
Type:
Zener
edacadModel:
ESD03B3Z Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
3.7V
Applications:
-
edacadModelUrl:
/en/models/20505538
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
Current - Peak Pulse (10/1000µs):
21A (8/20µs)
Voltage - Reverse Standoff (Typ):
3.3V
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Supplier Device Package:
0201
Capacitance @ Frequency:
-
Power Line Protection:
No
Power - Peak Pulse:
170W
ECCN:
EAR99
Checking for live stock

This is manufactured by Diotec Semiconductor AG. The manufacturer part number is ESD03B3Z. The maximum clamping voltage is 9.5v. It is assigned with possible HTSUS value of 8541.10.0000. The product is rohs compliant. The product has -50°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 0201 (0603 metric). It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 3.7v. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The product has 1 bidirectional channels. The peak pulse of the product is given as 21a (8/20µs). Provide with the typical reverse standoff voltage of 3.3v. The product is available in surface mount configuration. The product is automotive, a grade of class. 0201 is the supplier device package value. Power Line Protection: no. Furthermore, the peak pulse power of the product is 170w. The product is designated with the ear99 code number.

pdf icon
ESD03B3Z(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ESD03B3Z on website for other similar products.
We accept all major payment methods for all products including ET25565401. Please check your shopping cart at the time of order.
You can order Diotec Semiconductor AG brand products with ESD03B3Z directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diotec Semiconductor AG ESD03B3Z. You can also check on our website or by contacting our customer support team for further order details on Diotec Semiconductor AG ESD03B3Z.
