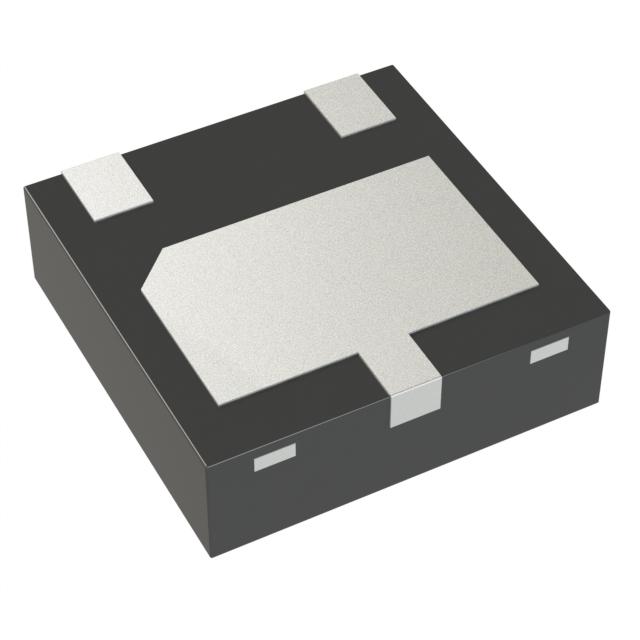

Diodes Incorporated D7V5S1U3LP20-7

D7V5S1U3LP20-7 Diodes Incorporated
Diodes Incorporated

Product Information

Voltage - Clamping (Max) @ Ipp:
12.4V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 150°C (TJ)
Package / Case:
3-UDFN Exposed Pad
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
8.33V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Voltage - Reverse Standoff (Typ):
7.5V (Max)
Unidirectional Channels:
1
standardLeadTime:
16 Weeks
Current - Peak Pulse (10/1000µs):
27A
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
U-DFN2020-3 (Type C)
Capacitance @ Frequency:
2235pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
320W
Base Product Number:
D7V5
ECCN:
EAR99
Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is D7V5S1U3LP20-7. The maximum clamping voltage is 12.4v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -65°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 3-udfn exposed pad. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 8.33v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Provide with the typical reverse standoff voltage of 7.5v (max). It has 1 unidirectional channels. It has a long 16 weeks standard lead time. The peak pulse of the product is given as 27a. The product is available in surface mount configuration. u-dfn2020-3 (type c) is the supplier device package value. It has a nominal capacitance and frequency values of 2235pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 320w. Moreover, it corresponds to d7v5, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
D7V5S1U3LP20 - D26V0S1U3LP20(Datasheets)
pdf icon
Diodes Environmental Compliance Cert(Environmental Information)
