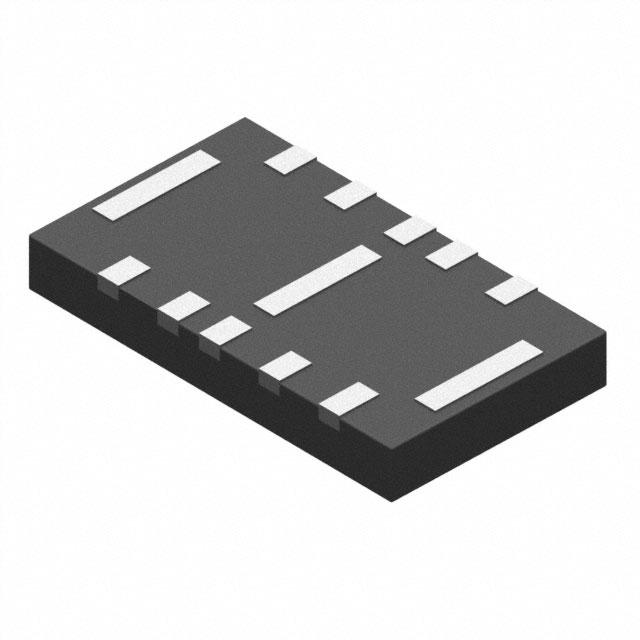

onsemi NSP8818MUTAG, Octal-Element Uni-Directional ESD Protection Array, 10-Pin UDFN

NSP8818MUTAG onsemi , Octal-Element Uni-Directional ESD Protection Array, 10-Pin UDFN
onsemi

Product Information

Maximum Clamping Voltage:
15V
Maximum Peak Pulse Current:
35A
Dimensions:
3.5 x 2 x 0.5mm
Mounting Type:
Surface Mount
Capacitance:
5pF
Maximum Reverse Leakage Current:
500nA
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
3.2V
Direction Type:
Uni-Directional
Height:
0.5mm
Width:
2mm
Length:
3.5mm
Package Type:
UDFN
Number of Elements per Chip:
8
Minimum Operating Temperature:
-55 °C
ESD Protection:
Yes
Working Voltage:
3V
Diode Configuration:
Array
Pin Count:
10
Test Current:
1mA
Voltage - Clamping (Max) @ Ipp:
15V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)
Package / Case:
10-UDFN Exposed Pad
Type:
Steering (Rail to Rail)
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
3.2V
Applications:
Ethernet
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
8
Current - Peak Pulse (10/1000µs):
35A (8/20µs)
Voltage - Reverse Standoff (Typ):
3V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
10-UDFN (3.5x2)
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
5pF @ 1MHz (Max)
Power Line Protection:
No
Power - Peak Pulse:
-
Base Product Number:
NSP8818
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Octal-Element Uni-Directional ESD Protection Array 10-Pin UDFN manufactured by onsemi. The manufacturer part number is NSP8818MUTAG. It is supplied with 15v of maximum clamping voltage. It also has 35a maximum peak pulse current. The given dimensions of the product include 3.5 x 2 x 0.5mm. The product is available in surface mount configuration. It provides a 5pf of capacitance value. The product has a maximum 500na of reverse leakage current. It has a maximum operating temperature of +125 °c. It harbours a 3.2v of minimum breakdown voltage. While is configured as uni-directional. In addition, the height is 0.5mm. Furthermore, the product is 2mm wide. Its accurate length is 3.5mm. The package is a sort of udfn. It consists of 8 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. ESD Protected - yes. It has about [Working Voltage] working voltage . The diode features a array configuration. It contains 10 pins. In addition, it has 1ma test current. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 10-udfn exposed pad. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 3.2v. The product is widely employed in ethernet. Its typical moisture sensitivity level is 1 (unlimited). It has 8 unidirectional channels. The peak pulse of the product is given as 35a (8/20µs). Provide with the typical reverse standoff voltage of 3v (max). 10-udfn (3.5x2) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 5pf @ 1mhz (max). Power Line Protection: no. Moreover, it corresponds to nsp8818, a base product number of the product. The product is designated with the ear99 code number.
