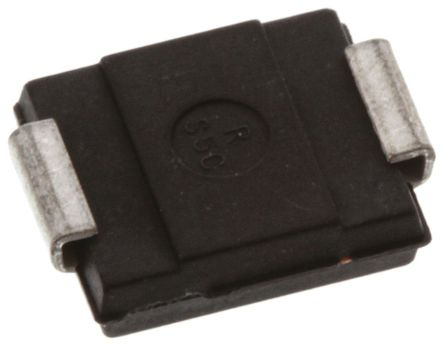

Taiwan Semi SMCJ48A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB

SMCJ48A Taiwan Semi , Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB
SMCJ48A
Taiwan Semiconductor

Product Information

Maximum Peak Pulse Current:
19.4A
Maximum Reverse Stand-off Voltage:
48V
Dimensions:
7.11 x 6.22 x 2.417mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
53V
Peak Pulse Power Dissipation:
1500W
Height:
2.417mm
Width:
6.22mm
Length:
7.11mm
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
77.4V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Taiwan Semi Uni-Directional TVS Diode 1500W 2-Pin DO-214AB manufactured by Taiwan Semiconductor. The manufacturer part number is SMCJ48A. It also has 19.4a maximum peak pulse current. While the maximised reverse stand-off voltage includes 48v. The given dimensions of the product include 7.11 x 6.22 x 2.417mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 53v of minimum breakdown voltage. It has 1500w of peak pulse power dissipation. In addition, the height is 2.417mm. Furthermore, the product is 6.22mm wide. Its accurate length is 7.11mm. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 77.4v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
