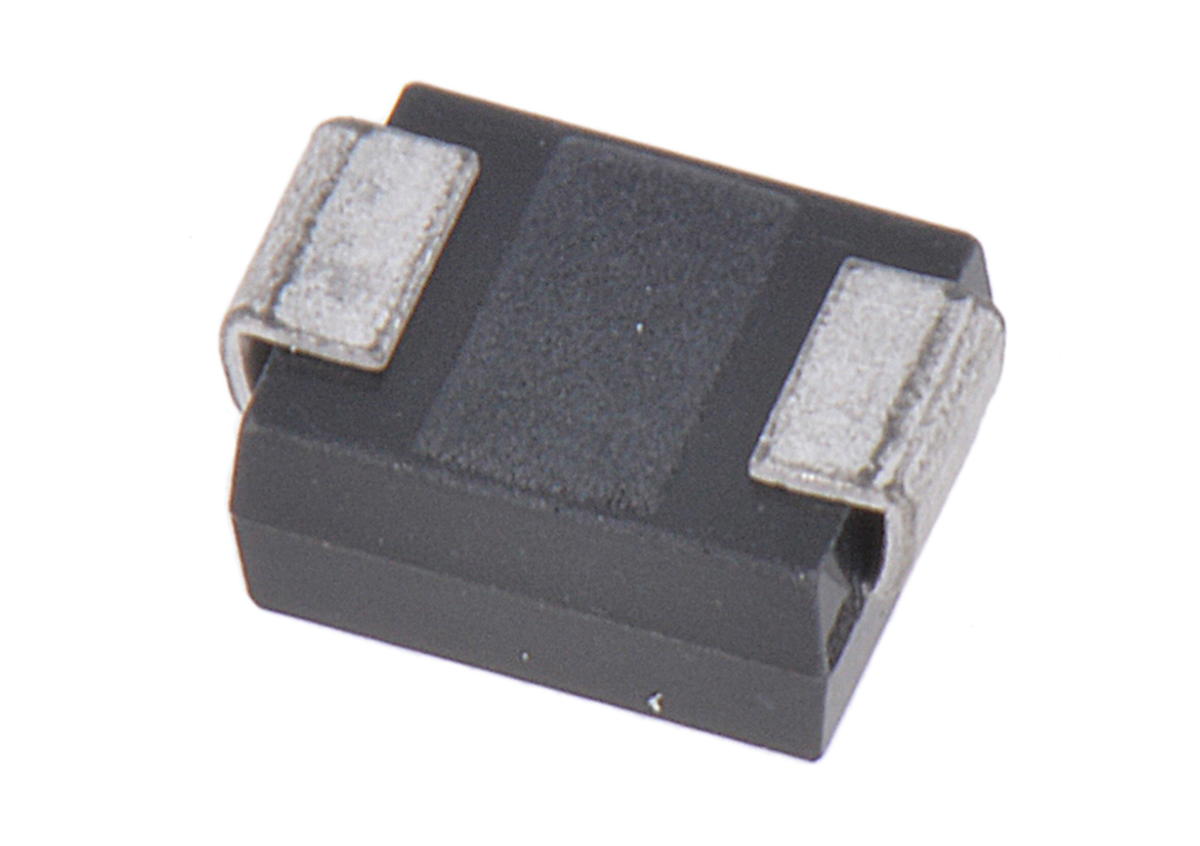

onsemi SMBJ36CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ36CA onsemi , Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
SMBJ36CA
onsemi

Product Information

Maximum Peak Pulse Current:
10.4A
Maximum Reverse Stand-off Voltage:
36V
Dimensions:
4.57 x 3.94 x 2.237mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
40V
Peak Pulse Power Dissipation:
600W
Height:
2.237mm
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
58.1V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by onsemi. The manufacturer part number is SMBJ36CA. It also has 10.4a maximum peak pulse current. While the maximised reverse stand-off voltage includes 36v. The given dimensions of the product include 4.57 x 3.94 x 2.237mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 40v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.237mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 58.1v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
