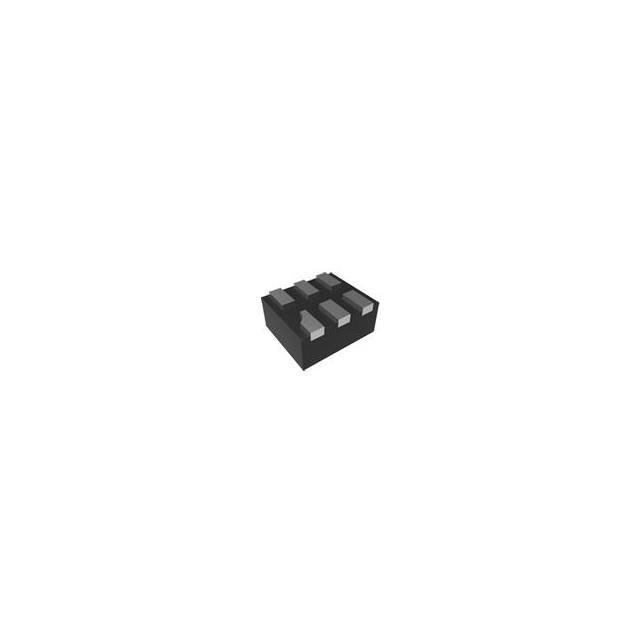

Micro Commercial Co ESDLC0502P2-TP

ESDLC0502P2-TP Micro Commercial Co
Micro Commercial Co

Product Information

Voltage - Clamping (Max) @ Ipp:
25V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)
Package / Case:
6-UFDFN
Type:
Zener
Voltage - Breakdown (Min):
6V
Applications:
General Purpose
Voltage - Reverse Standoff (Typ):
5V (Max)
Unidirectional Channels:
2
Current - Peak Pulse (10/1000µs):
5A (8/20µs)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DFN1210-6
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
0.3pF @ 1MHz
Power Line Protection:
Yes
Power - Peak Pulse:
125W
Base Product Number:
ESDLC0502
ECCN:
EAR99
Checking for live stock

This is manufactured by Micro Commercial Co. The manufacturer part number is ESDLC0502P2-TP. The maximum clamping voltage is 25v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 6-ufdfn. It comes in zener configuration. The minimum breakdown voltage is 6v. The product is widely employed in general purpose. Provide with the typical reverse standoff voltage of 5v (max). It has 2 unidirectional channels. The peak pulse of the product is given as 5a (8/20µs). The product is available in surface mount configuration. dfn1210-6 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 0.3pf @ 1mhz. Power Line Protection: yes. Furthermore, the peak pulse power of the product is 125w. Moreover, it corresponds to esdlc0502, a base product number of the product. The product is designated with the ear99 code number.
