Eaton - Electronics Division STN161090U602

STN161090U602 Eaton - Electronics Division
STN161090U602
Eaton - Electronics Division

Product Information

Manufacturer Standard Lead Time:
6 Weeks
Voltage - Clamping (Max) @ Ipp:
22V
Detailed Description:

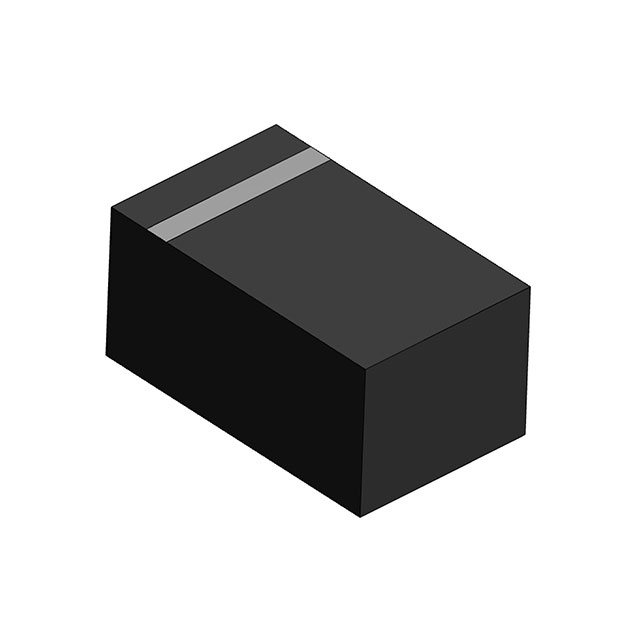

22V Clamp 90A (8/20µs) Ipp Tvs Diode Surface Mount DFN1610-2L
Mounting Type:
Surface Mount
Voltage - Reverse Standoff (Typ):
9V (Max)
Supplier Device Package:
DFN1610-2L
Voltage - Breakdown (Min):
9.5V
Unidirectional Channels:
1
Packaging:
Cut Tape (CT)
Applications:
General Purpose
Operating Temperature:
-55°C ~ 125°C (TJ)
Capacitance @ Frequency:
600pF @ 1MHz
Customer Reference:
Package / Case:
2-UDFN
Power Line Protection:
No
Power - Peak Pulse:
2000W (2kW)
Type:
Zener
Current - Peak Pulse (10/1000µs):
90A (8/20µs)
Manufacturer:
Eaton - Electronics Division
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is STN161090U602. It has typical 6 weeks of manufacturer standard lead time. The maximum clamping voltage is 22v. It features 22v clamp 90a (8/20µs) ipp tvs diode surface mount dfn1610-2l. The product is available in surface mount configuration. Provide with the typical reverse standoff voltage of 9v (max). dfn1610-2l is the supplier device package value. The minimum breakdown voltage is 9.5v. It has 1 unidirectional channels. In addition, cut tape (ct) is the available packaging type of the product. The product is widely employed in general purpose. The product has -55°c ~ 125°c (tj) operating temperature range. It has a nominal capacitance and frequency values of 600pf @ 1mhz. Moreover, the product comes in 2-udfn. Power Line Protection: no. Furthermore, the peak pulse power of the product is 2000w (2kw). It comes in zener configuration. The peak pulse of the product is given as 90a (8/20µs). The eaton - electronics division's product offers user-desired applications.
