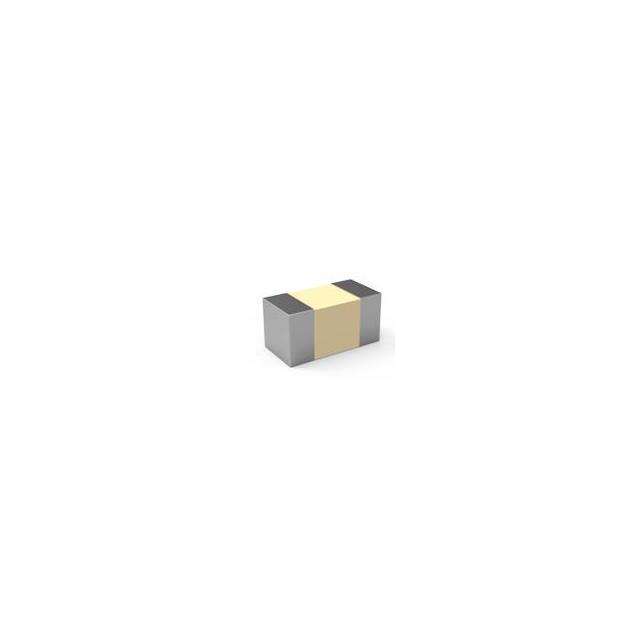

Micro Commercial Co ESDLC5V0AE3-TP

ESDLC5V0AE3-TP Micro Commercial Co
Micro Commercial Co

Product Information

Voltage - Clamping (Max) @ Ipp:
12V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
0201 (0603 Metric)
Type:
Zener
Voltage - Breakdown (Min):
10V (Typ)
Applications:
General Purpose
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
Current - Peak Pulse (10/1000µs):
2A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
0201-C
Packaging:
Tape & Reel (TR)
Capacitance @ Frequency:
3pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
30W
Base Product Number:
ESDLC5
ECCN:
EAR99
Checking for live stock

This is manufactured by Micro Commercial Co. The manufacturer part number is ESDLC5V0AE3-TP. The maximum clamping voltage is 12v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 0201 (0603 metric). It comes in zener configuration. The minimum breakdown voltage is 10v (typ). The product is widely employed in general purpose. Its typical moisture sensitivity level is 1 (unlimited). The product has 1 bidirectional channels. The peak pulse of the product is given as 2a (8/20µs). Provide with the typical reverse standoff voltage of 5v. The product is available in surface mount configuration. 0201-c is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. It has a nominal capacitance and frequency values of 3pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 30w. Moreover, it corresponds to esdlc5, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devices EOL 01/Feb/2019(PCN Obsolescence/ EOL)
pdf icon
MCC Selection Guide(Other Related Documents)
pdf icon
Micro Commercial CA Prop65(Environmental Information)
pdf icon
Micro Commercial RoHS(Environmental Information)
pdf icon
Micro Commercial REACH(Environmental Information)
pdf icon
Halogen by Pkg Type 02/Sep/2023(PCN Design/Specification)
