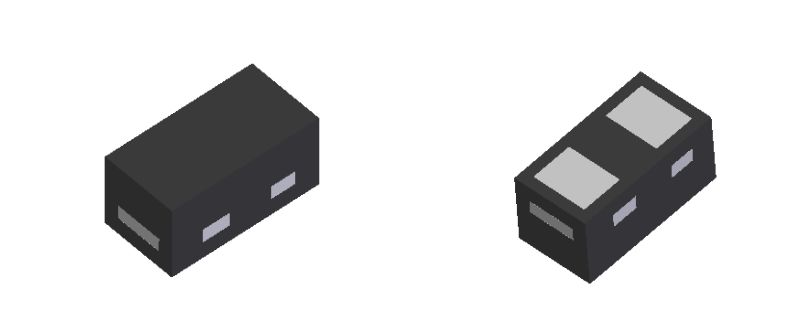

Diodes Inc D3V3X8U9LP3810-7, Octal Uni-Directional TVS Diode, 350mW, 9-Pin U-DFN3810

D3V3X8U9LP3810-7 Diodes Inc , Octal Uni-Directional TVS Diode, 350mW, 9-Pin U-DFN3810
DiodesZetex

Product Information

Maximum Clamping Voltage:
7V
Maximum Peak Pulse Current:
3A
Dimensions:
3.85 x 1.05 x 0.5mm
Mounting Type:
Surface Mount
Capacitance:
0.45pF
Maximum Reverse Leakage Current:
1µA
Maximum Operating Temperature:
+85 °C
Minimum Breakdown Voltage:
5.5V
Direction Type:
Uni-Directional
Peak Pulse Power Dissipation:
350mW
Height:
0.5mm
Width:
1.05mm
Length:
3.85mm
Package Type:
U-DFN3810
Number of Elements per Chip:
8
Minimum Operating Temperature:
-55 °C
ESD Protection:
Yes
Working Voltage:
3.3V
Diode Configuration:
Array
Pin Count:
9
RoHs Compliant
Checking for live stock

This is Diodes Inc Octal Uni-Directional TVS Diode 350mW 9-Pin U-DFN3810 manufactured by DiodesZetex. The manufacturer part number is D3V3X8U9LP3810-7. It is supplied with 7v of maximum clamping voltage. It also has 3a maximum peak pulse current. The given dimensions of the product include 3.85 x 1.05 x 0.5mm. The product is available in surface mount configuration. It provides a 0.45pf of capacitance value. The product has a maximum 1µa of reverse leakage current. It has a maximum operating temperature of +85 °c. It harbours a 5.5v of minimum breakdown voltage. While is configured as uni-directional. It has 350mw of peak pulse power dissipation. In addition, the height is 0.5mm. Furthermore, the product is 1.05mm wide. Its accurate length is 3.85mm. The package is a sort of u-dfn3810. It consists of 8 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. ESD Protected - yes. It has about [Working Voltage] working voltage . The diode features a array configuration. It contains 9 pins.
