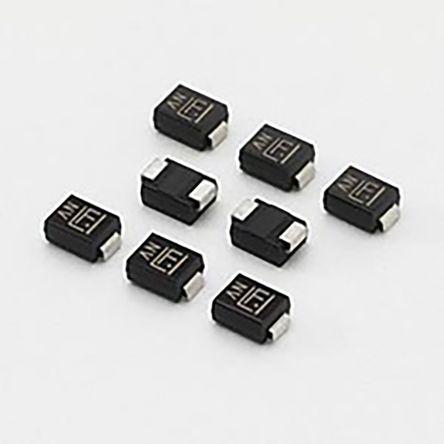

Littelfuse 1SMB15CAT3G, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA

1SMB15CAT3G Littelfuse , Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
1SMB15CAT3G
1SMB15CAT3G
ET16929321
ET16929321
TVS Diodes
Littelfuse

Product Information

Dimensions:
4.57 x 3.81 x 2.41mm
Direction Type:
Bi-Directional
Width:
3.81mm
Maximum Clamping Voltage:
24.4V
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
24A
Minimum Breakdown Voltage:
16.7V
Maximum Reverse Leakage Current:
5µA
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
4.57mm
Pin Count:
2
Peak Pulse Power Dissipation:
600W
Maximum Reverse Stand-off Voltage:
15V
Mounting Type:
Surface Mount
Height:
2.41mm
Minimum Operating Temperature:
-65 °C
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Littelfuse. The manufacturer part number is 1SMB15CAT3G. The given dimensions of the product include 4.57 x 3.81 x 2.41mm. While is configured as bi-directional. Furthermore, the product is 3.81mm wide. It is supplied with 24.4v of maximum clamping voltage. The diode features a single configuration. In addition, it has 1ma test current. It also has 24a maximum peak pulse current. It harbours a 16.7v of minimum breakdown voltage. The product has a maximum 5µa of reverse leakage current. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 4.57mm. It contains 2 pins. It has 600w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 15v. The product is available in surface mount configuration. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -65 °c.

pdf icon
1SMB, SZ1SMB Series 600 Watt Peak Power Zener Transient Voltage Suppressors(Technical Reference)
pdf icon
PCN - Littelfuse Acquisition of ON Semiconductor TVS Diode, Thyristor and Ignition IGBT Portfolio(Technical Reference)
pdf icon
600 Watt Peak Power Zener TVS Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1SMB15CAT3G on website for other similar products.
We accept all major payment methods for all products including ET16929321. Please check your shopping cart at the time of order.
You can order Littelfuse brand products with 1SMB15CAT3G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Littelfuse 1SMB15CAT3G, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA. You can also check on our website or by contacting our customer support team for further order details on Littelfuse 1SMB15CAT3G, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16929321 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Littelfuse" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16929321.
Yes. We ship 1SMB15CAT3G Internationally to many countries around the world.
