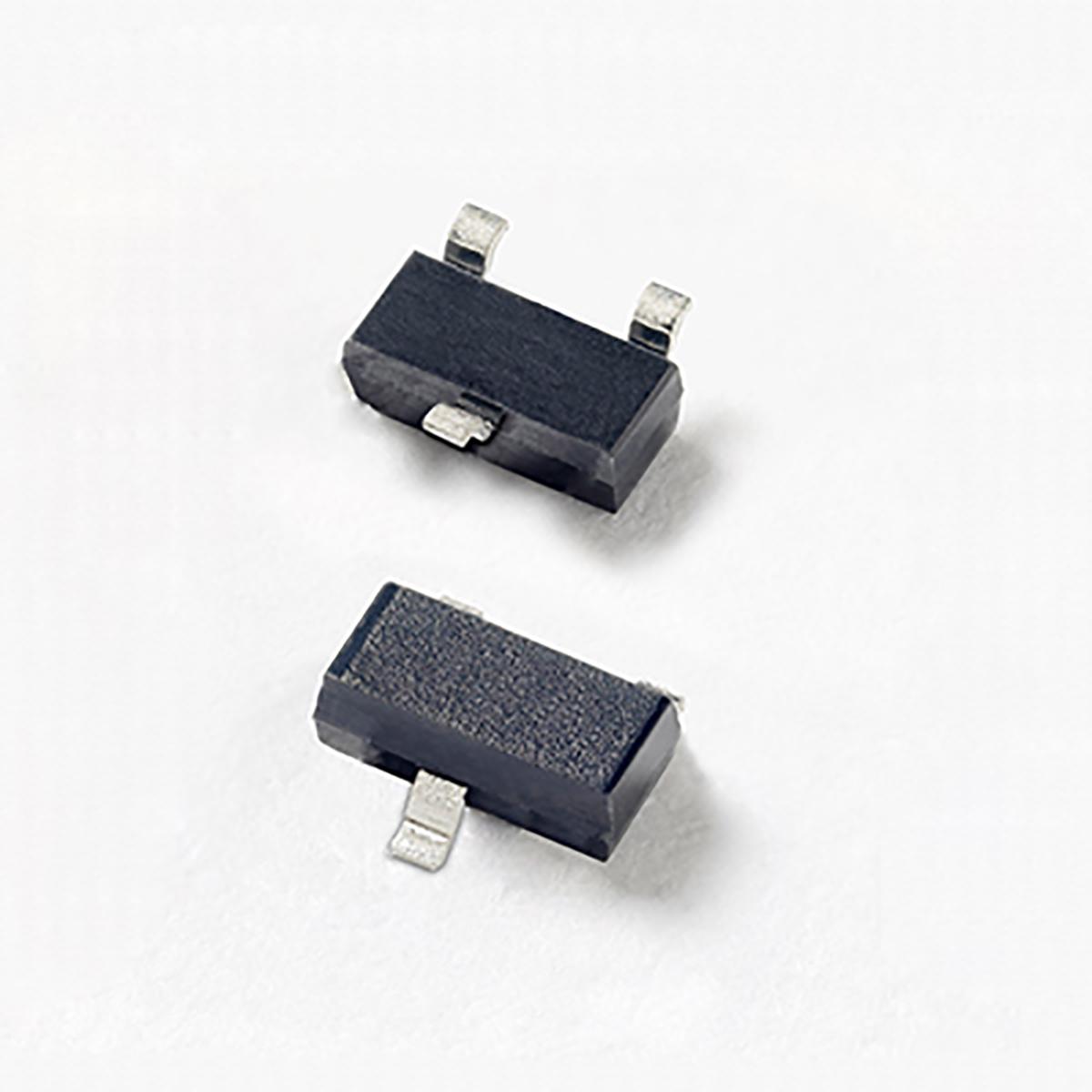

Littelfuse SM24CANB-02HTG, Dual Bi-Directional TVS Diode Array, 500W, 3-Pin SOT-23

SM24CANB-02HTG Littelfuse , Dual Bi-Directional TVS Diode Array, 500W, 3-Pin SOT-23
Littelfuse

Product Information

Dimensions:
3.04 x 1.4 x 1.02mm
Direction Type:
Bi-Directional
Capacitance:
30pF
Maximum Clamping Voltage:
50V
Automotive Standard:
AEC-Q101
Test Current:
1mA
Maximum Peak Pulse Current:
10A
Minimum Breakdown Voltage:
26.7 (Reverse)V
Maximum Reverse Leakage Current:
100nA
Package Type:
SOT-23
Number of Elements per Chip:
2
Maximum Operating Temperature:
+125 °C
ESD Protection:
Yes
Length:
3.04mm
Pin Count:
3
Peak Pulse Power Dissipation:
500W
Maximum Reverse Stand-off Voltage:
24V
Mounting Type:
Surface Mount
Width:
1.4mm
Height:
1.02mm
Working Voltage:
24V
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional TVS Diode Array 500W 3-Pin SOT-23 manufactured by Littelfuse. The manufacturer part number is SM24CANB-02HTG. The given dimensions of the product include 3.04 x 1.4 x 1.02mm. While is configured as bi-directional. It provides a 30pf of capacitance value. It is supplied with 50v of maximum clamping voltage. The product complies with automotive standard - aec-q101. In addition, it has 1ma test current. It also has 10a maximum peak pulse current. It harbours a 26.7 (reverse)v of minimum breakdown voltage. The product has a maximum 100na of reverse leakage current. The package is a sort of sot-23. It consists of 2 elements per chip. It has a maximum operating temperature of +125 °c. ESD Protected - yes. Its accurate length is 3.04mm. It contains 3 pins. It has 500w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 24v. The product is available in surface mount configuration. Furthermore, the product is 1.4mm wide. In addition, the height is 1.02mm. It has about [Working Voltage] working voltage . Whereas, the minimum operating temperature of the product is -40 °c.
