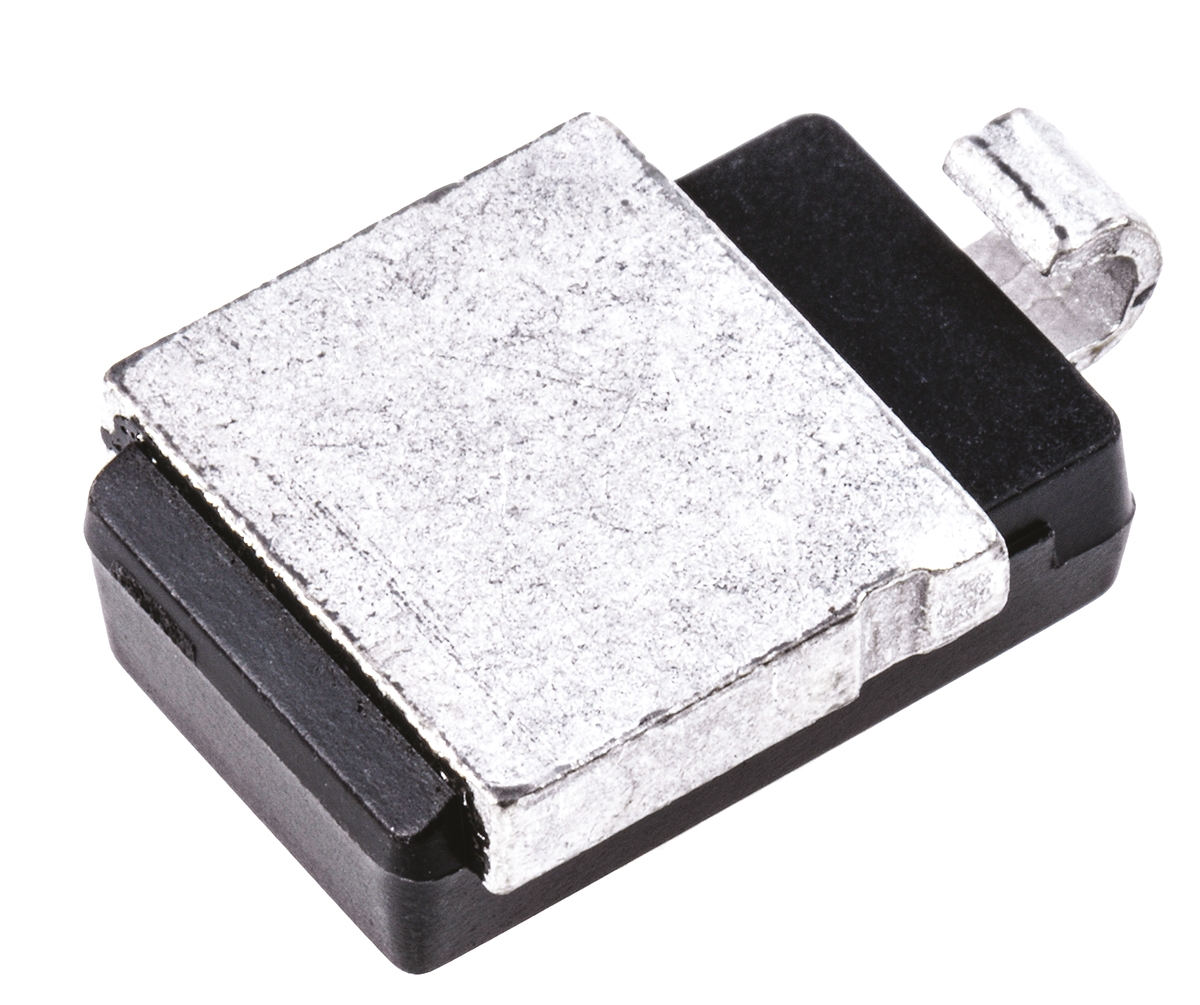

Vishay SM8S24AHE3_A/I, Dual Uni-Directional TVS Diode, 6600W, 2-Pin DO-218AB

SM8S24AHE3_A-I Vishay SM8S24AHE3_A/I, Dual Uni-Directional TVS Diode, 6600W, 2-Pin DO-218AB
SM8S24AHE3_A/I
Vishay

Product Information

Maximum Peak Pulse Current:
153A
Maximum Reverse Stand-off Voltage:
24V
Dimensions:
13.7 x 8.7 x 5mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
150µA
Minimum Breakdown Voltage:
26.7V
Peak Pulse Power Dissipation:
6600W
Height:
5mm
Width:
8.7mm
Length:
13.7mm
Package Type:
DO-218AB
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
43V
Diode Configuration:
Common Anode
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Dual Uni-Directional TVS Diode 6600W 2-Pin DO-218AB manufactured by Vishay. The manufacturer part number is SM8S24AHE3_A/I. It also has 153a maximum peak pulse current. While the maximised reverse stand-off voltage includes 24v. The given dimensions of the product include 13.7 x 8.7 x 5mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +175 °c. The product has a maximum 150µa of reverse leakage current. It harbours a 26.7v of minimum breakdown voltage. It has 6600w of peak pulse power dissipation. In addition, the height is 5mm. Furthermore, the product is 8.7mm wide. Its accurate length is 13.7mm. The package is a sort of do-218ab. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 43v of maximum clamping voltage. The diode features a common anode configuration. It contains 2 pins. In addition, it has 5ma test current.
