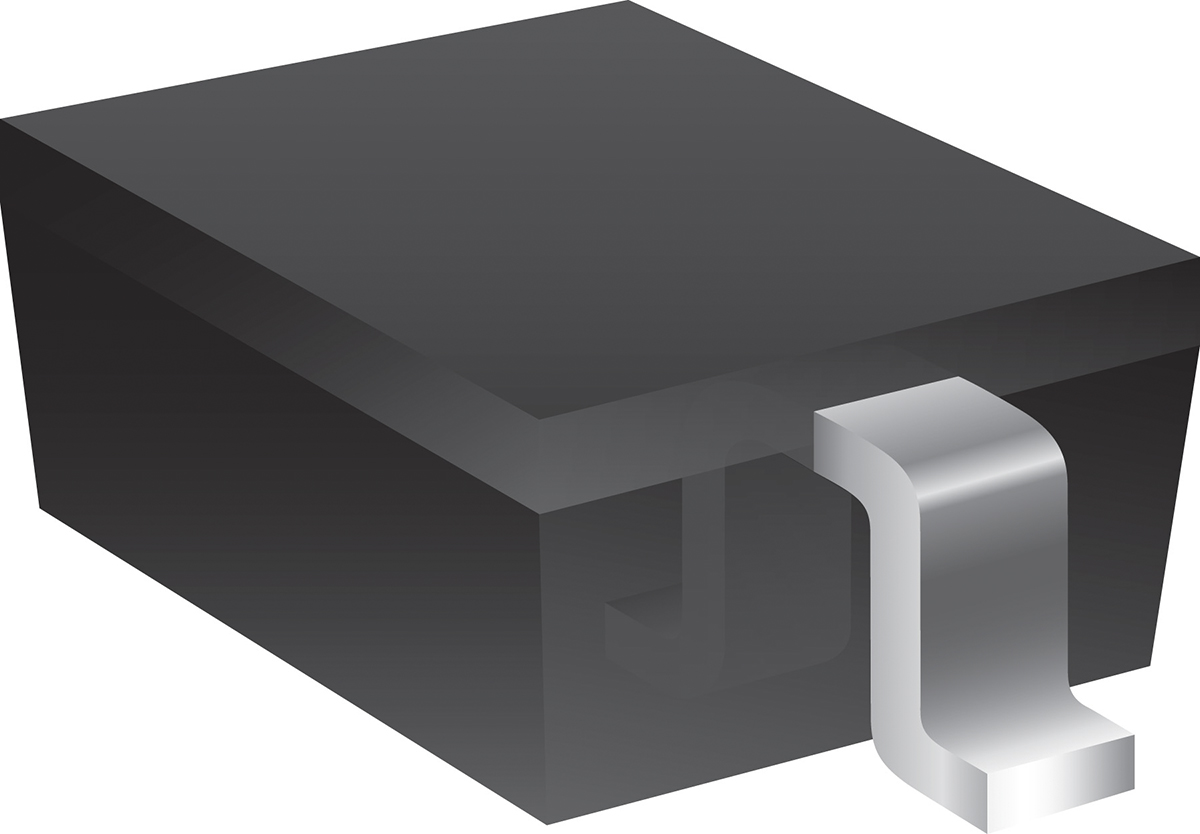

Bourns CDSOD323-T03S, Uni-Directional TVS Diode, 500W, 2-Pin SOD-323

CDSOD323-T03S Bourns , Uni-Directional TVS Diode, 500W, 2-Pin SOD-323
Bourns

Product Information

Dimensions:
1.9 x 1.45 x 1.01mm
Direction Type:
Uni-Directional
Capacitance:
500pF
Height:
1.01mm
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
43A
Minimum Breakdown Voltage:
4V
Surge Current Rating:
24A
Maximum Reverse Leakage Current:
125µA
Package Type:
SOD-323
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
1.9mm
Pin Count:
2
Peak Pulse Power Dissipation:
500W
Mounting Type:
Surface Mount
Width:
1.45mm
Maximum Clamping Voltage:
7V
Working Voltage:
3.3V
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 500W 2-Pin SOD-323 manufactured by Bourns. The manufacturer part number is CDSOD323-T03S. The given dimensions of the product include 1.9 x 1.45 x 1.01mm. While is configured as uni-directional. It provides a 500pf of capacitance value. In addition, the height is 1.01mm. The diode features a single configuration. In addition, it has 1ma test current. It also has 43a maximum peak pulse current. It harbours a 4v of minimum breakdown voltage. It has about 24a surge current rating . The product has a maximum 125µa of reverse leakage current. The package is a sort of sod-323. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 1.9mm. It contains 2 pins. It has 500w of peak pulse power dissipation. The product is available in surface mount configuration. Furthermore, the product is 1.45mm wide. It is supplied with 7v of maximum clamping voltage. It has about [Working Voltage] working voltage . Whereas, the minimum operating temperature of the product is -55 °c.
