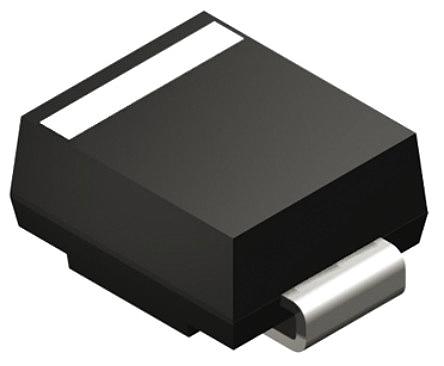

HY Electronic Corp SMBJ7.5CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ7-5CA HY Electronic Corp SMBJ7.5CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
HY Electronic Corp

Product Information

Maximum Peak Pulse Current:
46.5A
Maximum Reverse Stand-off Voltage:
7.5V
Dimensions:
4.7 x 3.94 x 2.24mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Surge Current Rating:
100A
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
100µA
Minimum Breakdown Voltage:
8.33V
Peak Pulse Power Dissipation:
600W
Height:
2.24mm
Width:
3.94mm
Length:
4.7mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
12.9V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by HY Electronic Corp. The manufacturer part number is SMBJ7.5CA. It also has 46.5a maximum peak pulse current. While the maximised reverse stand-off voltage includes 7.5v. The given dimensions of the product include 4.7 x 3.94 x 2.24mm. The product is available in surface mount configuration. While is configured as bi-directional. It has about 100a surge current rating . It has a maximum operating temperature of +150 °c. The product has a maximum 100µa of reverse leakage current. It harbours a 8.33v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.24mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.7mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 12.9v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
