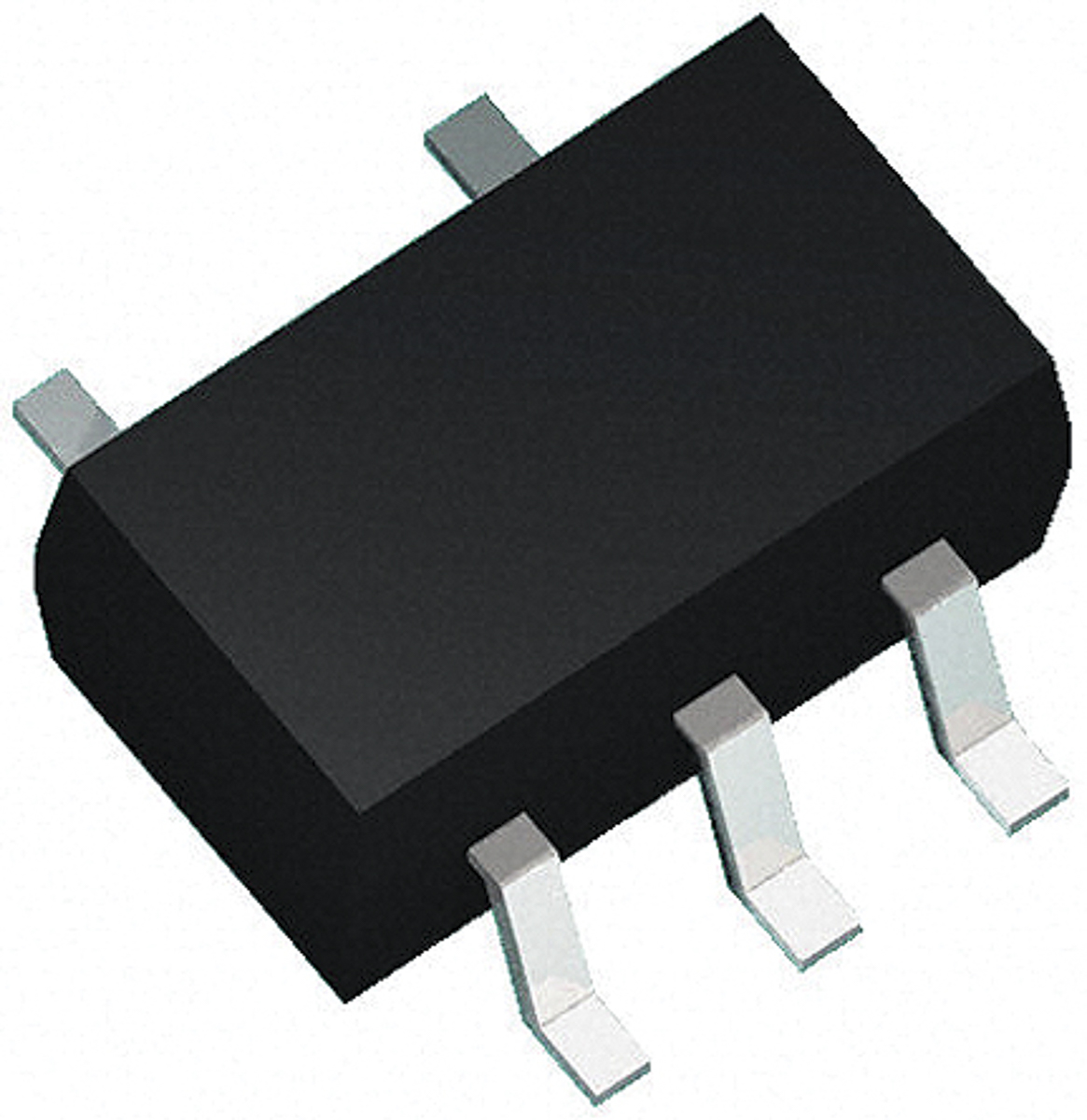

Littelfuse SP0504BAJTG, Quad Uni-Directional TVS Diode Array, 0.2W, 5-Pin SC-70

SP0504BAJTG Littelfuse , Quad Uni-Directional TVS Diode Array, 0.2W, 5-Pin SC-70
Littelfuse

Product Information

Maximum Reverse Stand-off Voltage:
5.5V
Maximum Operating Temperature:
+85 °C
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Capacitance:
30pF
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
100nA
Direction Type:
Uni-Directional
Peak Pulse Power Dissipation:
0.2W
Height:
1mm
Width:
1.35mm
Length:
2.25mm
Package Type:
SC-70
Number of Elements per Chip:
4
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
8.5V
Diode Configuration:
Array
Pin Count:
5
Test Current:
10mA
RoHs Compliant
Checking for live stock

This is Quad Uni-Directional TVS Diode Array 0.2W 5-Pin SC-70 manufactured by Littelfuse. The manufacturer part number is SP0504BAJTG. While the maximised reverse stand-off voltage includes 5.5v. It has a maximum operating temperature of +85 °c. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides a 30pf of capacitance value. Moreover, it has about 30kv ESD voltage . The product has a maximum 100na of reverse leakage current. While is configured as uni-directional. It has 0.2w of peak pulse power dissipation. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of sc-70. It consists of 4 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. It is supplied with 8.5v of maximum clamping voltage. The diode features a array configuration. It contains 5 pins. In addition, it has 10ma test current.
