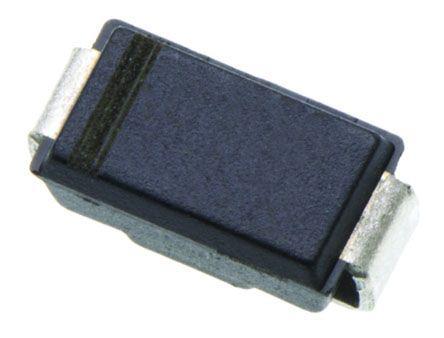

Fagor Electronica P4SMA36A, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

P4SMA36A Fagor Electronica , Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC
Fagor Electronica

Product Information

Dimensions:
5.1 x 2.6 x 2mm
Direction Type:
Uni-Directional
Width:
2.6mm
Height:
2mm
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
8.4A
Minimum Breakdown Voltage:
34.2V
Surge Current Rating:
40A
Maximum Reverse Leakage Current:
1µA
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Length:
5.1mm
Pin Count:
2
Peak Pulse Power Dissipation:
400W
Maximum Reverse Stand-off Voltage:
30.8V
Mounting Type:
Surface Mount
Maximum Clamping Voltage:
49.9V
Working Voltage:
36V
Minimum Operating Temperature:
-65 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by Fagor Electronica. The manufacturer part number is P4SMA36A. The given dimensions of the product include 5.1 x 2.6 x 2mm. While is configured as uni-directional. Furthermore, the product is 2.6mm wide. In addition, the height is 2mm. The diode features a single configuration. In addition, it has 1ma test current. It also has 8.4a maximum peak pulse current. It harbours a 34.2v of minimum breakdown voltage. It has about 40a surge current rating . The product has a maximum 1µa of reverse leakage current. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. Its accurate length is 5.1mm. It contains 2 pins. It has 400w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 30.8v. The product is available in surface mount configuration. It is supplied with 49.9v of maximum clamping voltage. It has about [Working Voltage] working voltage . Whereas, the minimum operating temperature of the product is -65 °c.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
P4SMA Series 400W TVS Diodes(Technical Reference)
