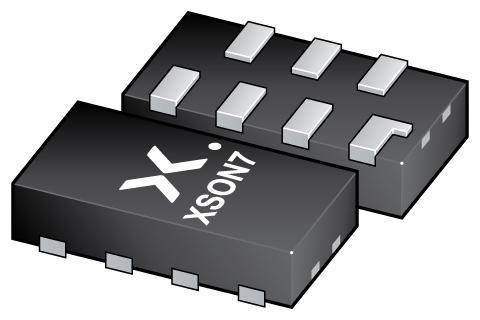

Nexperia PUSB3AB6Z, Hex ESD Protection Diode, 7-Pin DFN2111

PUSB3AB6Z Nexperia , Hex ESD Protection Diode, 7-Pin DFN2111
Nexperia

Product Information

Maximum Clamping Voltage:
6V
Maximum Peak Pulse Current:
7A
Maximum Reverse Stand-off Voltage:
5V
Dimensions:
2.2 x 1.2 x 0.45mm
Mounting Type:
Surface Mount
Capacitance:
0.2pF
Minimum Breakdown Voltage:
6V
ESD Protection:
Yes
Height:
0.45mm
Width:
1.2mm
Length:
2.2mm
Package Type:
DFN2111
Number of Elements per Chip:
6
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
100nA
Working Voltage:
3.3V
Maximum Operating Temperature:
+85 °C
Pin Count:
7
RoHs Compliant
Checking for live stock

This is Hex ESD Protection Diode 7-Pin DFN2111 manufactured by Nexperia. The manufacturer part number is PUSB3AB6Z. It is supplied with 6v of maximum clamping voltage. It also has 7a maximum peak pulse current. While the maximised reverse stand-off voltage includes 5v. The given dimensions of the product include 2.2 x 1.2 x 0.45mm. The product is available in surface mount configuration. It provides a 0.2pf of capacitance value. It harbours a 6v of minimum breakdown voltage. ESD Protected - yes. In addition, the height is 0.45mm. Furthermore, the product is 1.2mm wide. Its accurate length is 2.2mm. The package is a sort of dfn2111. It consists of 6 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 100na of reverse leakage current. It has about [Working Voltage] working voltage . It has a maximum operating temperature of +85 °c. It contains 7 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PUSB3AB6Z on website for other similar products.
We accept all major payment methods for all products including ET16800711. Please check your shopping cart at the time of order.
You can order Nexperia brand products with PUSB3AB6Z directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia PUSB3AB6Z, Hex ESD Protection Diode, 7-Pin DFN2111. You can also check on our website or by contacting our customer support team for further order details on Nexperia PUSB3AB6Z, Hex ESD Protection Diode, 7-Pin DFN2111.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800711 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800711.
Yes. We ship PUSB3AB6Z Internationally to many countries around the world.
