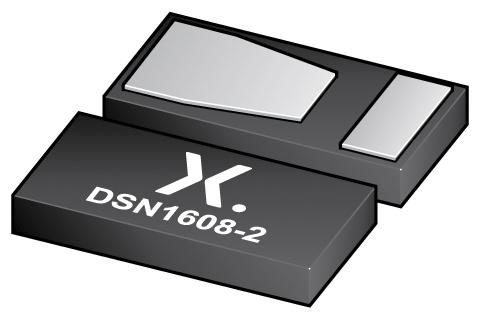

Nexperia PTVS5V0Z1USKNYL, Uni-Directional TVS Diode, 1200W, 2-Pin DSN1608

PTVS5V0Z1USKNYL Nexperia , Uni-Directional TVS Diode, 1200W, 2-Pin DSN1608
Nexperia

Product Information

Dimensions:
1.65 x 0.85 x 0.28mm
Direction Type:
Uni-Directional
Capacitance:
1.2nF
Maximum Clamping Voltage:
18V
Diode Configuration:
Single
Maximum Peak Pulse Current:
80A
Minimum Breakdown Voltage:
6.4V
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
1µA
Package Type:
DSN1608
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
ESD Protection:
Yes
Length:
1.65mm
Pin Count:
2
Peak Pulse Power Dissipation:
1200W
Maximum Reverse Stand-off Voltage:
5V
Mounting Type:
Surface Mount
Width:
0.85mm
Height:
0.28mm
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 1200W 2-Pin DSN1608 manufactured by Nexperia. The manufacturer part number is PTVS5V0Z1USKNYL. The given dimensions of the product include 1.65 x 0.85 x 0.28mm. While is configured as uni-directional. It provides a 1.2nf of capacitance value. It is supplied with 18v of maximum clamping voltage. The diode features a single configuration. It also has 80a maximum peak pulse current. It harbours a 6.4v of minimum breakdown voltage. Moreover, it has about 30kv ESD voltage . The product has a maximum 1µa of reverse leakage current. The package is a sort of dsn1608. It consists of 1 elements per chip. It has a maximum operating temperature of +125 °c. ESD Protected - yes. Its accurate length is 1.65mm. It contains 2 pins. It has 1200w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 5v. The product is available in surface mount configuration. Furthermore, the product is 0.85mm wide. In addition, the height is 0.28mm. Whereas, the minimum operating temperature of the product is -40 °c.
