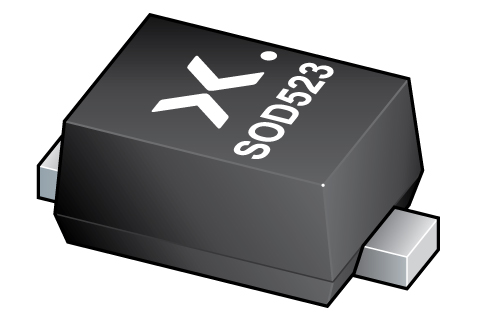

Nexperia PESD5V0X1UB,135, Uni-Directional ESD Protection Diode, 2-Pin SOD-523

PESD5V0X1UB-135 Nexperia PESD5V0X1UB,135, Uni-Directional ESD Protection Diode, 2-Pin SOD-523
Nexperia

Product Information

Dimensions:
1.25 x 0.85 x 0.65mm
Direction Type:
Uni-Directional
Capacitance:
1.1pF
Maximum Clamping Voltage:
8V
Diode Configuration:
Single
Automotive Standard:
AEC-Q101
Maximum Peak Pulse Current:
1.5A
Minimum Breakdown Voltage:
5.8V
Surge Current Rating:
1.5A
ESD Voltage:
8kV
Maximum Reverse Leakage Current:
100nA
Package Type:
SOD-523
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
1.25mm
Pin Count:
2
Maximum Reverse Stand-off Voltage:
5.5V
Mounting Type:
Surface Mount
Width:
0.85mm
Height:
0.65mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional ESD Protection Diode 2-Pin SOD-523 manufactured by Nexperia. The manufacturer part number is PESD5V0X1UB,135. The given dimensions of the product include 1.25 x 0.85 x 0.65mm. While is configured as uni-directional. It provides a 1.1pf of capacitance value. It is supplied with 8v of maximum clamping voltage. The diode features a single configuration. The product complies with automotive standard - aec-q101. It also has 1.5a maximum peak pulse current. It harbours a 5.8v of minimum breakdown voltage. It has about 1.5a surge current rating . Moreover, it has about 8kv ESD voltage . The product has a maximum 100na of reverse leakage current. The package is a sort of sod-523. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 1.25mm. It contains 2 pins. While the maximised reverse stand-off voltage includes 5.5v. The product is available in surface mount configuration. Furthermore, the product is 0.85mm wide. In addition, the height is 0.65mm. Whereas, the minimum operating temperature of the product is -55 °c.
