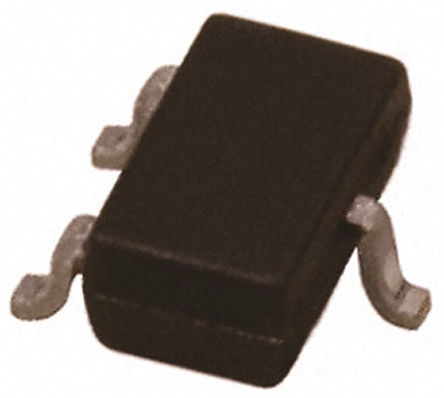

Nexperia PESD5V0X1BT,215, Dual Bi-Directional ESD Protection Diode, 3-Pin SOT-23

PESD5V0X1BT-215 Nexperia PESD5V0X1BT,215, Dual Bi-Directional ESD Protection Diode, 3-Pin SOT-23
Nexperia

Product Information

Maximum Reverse Stand-off Voltage:
5V
Dimensions:
3 x 1.4 x 1.1mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
100nA
ESD Protection:
Yes
Height:
1.1mm
Width:
1.4mm
Length:
3mm
Package Type:
SOT-23
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Minimum Breakdown Voltage:
5.8V
Diode Configuration:
Common Anode
Pin Count:
3
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 3-Pin SOT-23 manufactured by Nexperia. The manufacturer part number is PESD5V0X1BT,215. While the maximised reverse stand-off voltage includes 5v. The given dimensions of the product include 3 x 1.4 x 1.1mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 100na of reverse leakage current. ESD Protected - yes. In addition, the height is 1.1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3mm. The package is a sort of sot-23. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It harbours a 5.8v of minimum breakdown voltage. The diode features a common anode configuration. It contains 3 pins. In addition, it has 5ma test current.

pdf icon
PESD5V0X1BQ, PESD5V0X1BT Ultra low capacitance bidirectional ESD protection diodes datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
