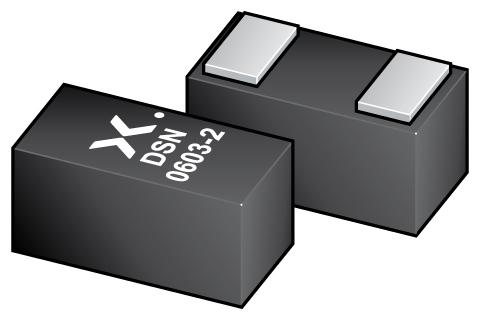

Nexperia PESD18VF1BSFYL, Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603

PESD18VF1BSFYL Nexperia , Dual Bi-Directional ESD Protection Diode, 2-Pin DSN0603
Nexperia

Product Information

Maximum Peak Pulse Current:
1A
Maximum Reverse Stand-off Voltage:
18V
Dimensions:
0.62 x 0.32 x 0.29mm
Mounting Type:
Surface Mount
Capacitance:
0.45pF
Maximum Reverse Leakage Current:
30nA
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
19V
Direction Type:
Bi-Directional
Height:
0.29mm
Width:
0.32mm
Length:
0.62mm
Package Type:
DSN0603
Number of Elements per Chip:
2
Minimum Operating Temperature:
-45 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
16V
Diode Configuration:
Dual
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 2-Pin DSN0603 manufactured by Nexperia. The manufacturer part number is PESD18VF1BSFYL. It also has 1a maximum peak pulse current. While the maximised reverse stand-off voltage includes 18v. The given dimensions of the product include 0.62 x 0.32 x 0.29mm. The product is available in surface mount configuration. It provides a 0.45pf of capacitance value. The product has a maximum 30na of reverse leakage current. It has a maximum operating temperature of +125 °c. It harbours a 19v of minimum breakdown voltage. While is configured as bi-directional. In addition, the height is 0.29mm. Furthermore, the product is 0.32mm wide. Its accurate length is 0.62mm. The package is a sort of dsn0603. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -45 °c. ESD Protected - yes. It is supplied with 16v of maximum clamping voltage. The diode features a dual configuration. It contains 2 pins.
