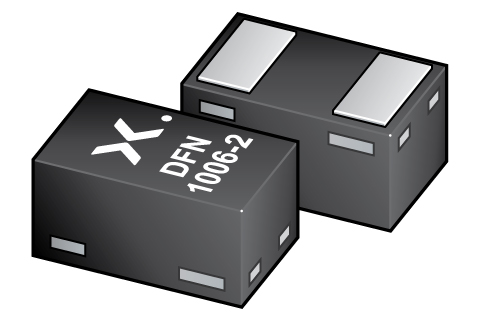

Nexperia PESD18VF1BLYL, Dual Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882

PESD18VF1BLYL Nexperia , Dual Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882
Nexperia

Product Information

Automotive Standard:
AEC-Q101
Maximum Peak Pulse Current:
1A
Maximum Reverse Stand-off Voltage:
18V
Dimensions:
1.02 x 0.62 x 0.47mm
Mounting Type:
Surface Mount
Capacitance:
0.5pF
Maximum Reverse Leakage Current:
30nA
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
19V
Direction Type:
Bi-Directional
Height:
0.47mm
Width:
0.62mm
Length:
1.02mm
Package Type:
DFN1006, SOD-882
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
17V
Diode Configuration:
Dual
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 2-Pin DFN1006 SOD-882 manufactured by Nexperia. The manufacturer part number is PESD18VF1BLYL. The product complies with automotive standard - aec-q101. It also has 1a maximum peak pulse current. While the maximised reverse stand-off voltage includes 18v. The given dimensions of the product include 1.02 x 0.62 x 0.47mm. The product is available in surface mount configuration. It provides a 0.5pf of capacitance value. The product has a maximum 30na of reverse leakage current. It has a maximum operating temperature of +150 °c. It harbours a 19v of minimum breakdown voltage. While is configured as bi-directional. In addition, the height is 0.47mm. Furthermore, the product is 0.62mm wide. Its accurate length is 1.02mm. The package is a sort of dfn1006, sod-882. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. ESD Protected - yes. It is supplied with 17v of maximum clamping voltage. The diode features a dual configuration. It contains 2 pins.
