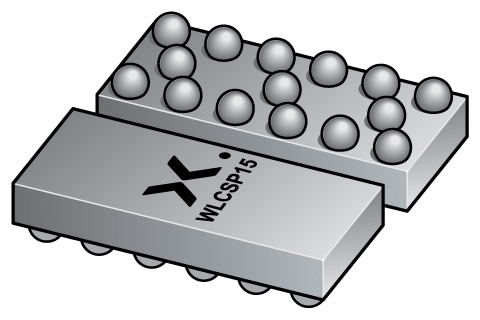

Nexperia PCMF3USB3SZ, Dual ESD Protection Diode, 15-Pin WLCSP

PCMF3USB3SZ Nexperia , Dual ESD Protection Diode, 15-Pin WLCSP
Nexperia

Product Information

Maximum Peak Pulse Current:
7A
Dimensions:
2.42 x 1.22 x 0.38mm
Mounting Type:
Surface Mount
Capacitance:
0.25pF
Minimum Breakdown Voltage:
6V
ESD Protection:
Yes
Height:
0.38mm
Width:
1.22mm
Length:
2.42mm
Package Type:
WLCSP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
100nA
Working Voltage:
5V
Maximum Operating Temperature:
+85 °C
Pin Count:
15
RoHs Compliant
Checking for live stock

This is Dual ESD Protection Diode 15-Pin WLCSP manufactured by Nexperia. The manufacturer part number is PCMF3USB3SZ. It also has 7a maximum peak pulse current. The given dimensions of the product include 2.42 x 1.22 x 0.38mm. The product is available in surface mount configuration. It provides a 0.25pf of capacitance value. It harbours a 6v of minimum breakdown voltage. ESD Protected - yes. In addition, the height is 0.38mm. Furthermore, the product is 1.22mm wide. Its accurate length is 2.42mm. The package is a sort of wlcsp. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 100na of reverse leakage current. It has about [Working Voltage] working voltage . It has a maximum operating temperature of +85 °c. It contains 15 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PCMF3USB3SZ on website for other similar products.
We accept all major payment methods for all products including ET16800184. Please check your shopping cart at the time of order.
You can order Nexperia brand products with PCMF3USB3SZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia PCMF3USB3SZ, Dual ESD Protection Diode, 15-Pin WLCSP. You can also check on our website or by contacting our customer support team for further order details on Nexperia PCMF3USB3SZ, Dual ESD Protection Diode, 15-Pin WLCSP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800184 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800184.
Yes. We ship PCMF3USB3SZ Internationally to many countries around the world.
