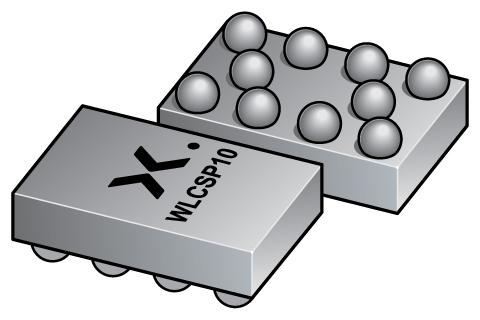

Nexperia PCMF2USB30Z, Dual ESD Protection Diode, 10-Pin WLCSP

PCMF2USB30Z Nexperia , Dual ESD Protection Diode, 10-Pin WLCSP
Nexperia

Product Information

Maximum Peak Pulse Current:
7A
Dimensions:
1.62 x 1.22 x 0.38mm
Mounting Type:
Surface Mount
Capacitance:
0.25pF
Minimum Breakdown Voltage:
6V
ESD Protection:
Yes
Height:
0.38mm
Width:
1.22mm
Length:
1.62mm
Package Type:
WLCSP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
100nA
Working Voltage:
5V
Maximum Operating Temperature:
+85 °C
Pin Count:
10
RoHs Compliant
Checking for live stock

This is Dual ESD Protection Diode 10-Pin WLCSP manufactured by Nexperia. The manufacturer part number is PCMF2USB30Z. It also has 7a maximum peak pulse current. The given dimensions of the product include 1.62 x 1.22 x 0.38mm. The product is available in surface mount configuration. It provides a 0.25pf of capacitance value. It harbours a 6v of minimum breakdown voltage. ESD Protected - yes. In addition, the height is 0.38mm. Furthermore, the product is 1.22mm wide. Its accurate length is 1.62mm. The package is a sort of wlcsp. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 100na of reverse leakage current. It has about [Working Voltage] working voltage . It has a maximum operating temperature of +85 °c. It contains 10 pins.
