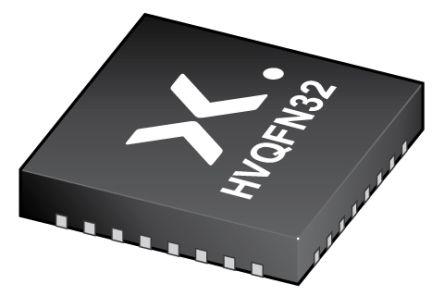

Nexperia IP4786CZ32Y, Dual Bi-Directional ESD Protection Diode, 50mW, 32-Pin HVQFN32, SOT-617

IP4786CZ32Y Nexperia , Dual Bi-Directional ESD Protection Diode, 50mW, 32-Pin HVQFN32, SOT-617
Nexperia

Product Information

Maximum Clamping Voltage:
8V
Dimensions:
5.1 x 5.1 x 0.8mm
Mounting Type:
Surface Mount
Capacitance:
10pF
Maximum Reverse Leakage Current:
1µA
Maximum Operating Temperature:
+85 °C
Minimum Breakdown Voltage:
6V
Direction Type:
Bi-Directional
Peak Pulse Power Dissipation:
50mW
Height:
0.8mm
Width:
5.1mm
Length:
5.1mm
Package Type:
HVQFN32, SOT-617
Number of Elements per Chip:
2
Minimum Operating Temperature:
-25 °C
ESD Protection:
Yes
Working Voltage:
6.5V
Diode Configuration:
Dual
Pin Count:
32
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 50mW 32-Pin HVQFN32 SOT-617 manufactured by Nexperia. The manufacturer part number is IP4786CZ32Y. It is supplied with 8v of maximum clamping voltage. The given dimensions of the product include 5.1 x 5.1 x 0.8mm. The product is available in surface mount configuration. It provides a 10pf of capacitance value. The product has a maximum 1µa of reverse leakage current. It has a maximum operating temperature of +85 °c. It harbours a 6v of minimum breakdown voltage. While is configured as bi-directional. It has 50mw of peak pulse power dissipation. In addition, the height is 0.8mm. Furthermore, the product is 5.1mm wide. Its accurate length is 5.1mm. The package is a sort of hvqfn32, sot-617. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -25 °c. ESD Protected - yes. It has about [Working Voltage] working voltage . The diode features a dual configuration. It contains 32 pins.
