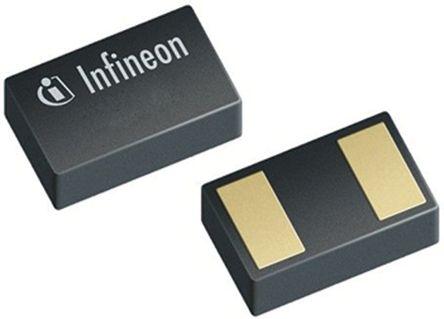

Infineon ESD204B102ELE6327XTMA1, Bi-Directional TVS Diode, 2-Pin TSLP

ESD204B102ELE6327XTMA1 Infineon , Bi-Directional TVS Diode, 2-Pin TSLP
Infineon

Product Information

Maximum Peak Pulse Current:
1A
Dimensions:
1 x 0.6 x 0.26mm
Mounting Type:
Surface Mount
Capacitance:
7pF
Maximum Reverse Leakage Current:
50nA
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
8.5V
Direction Type:
Bi-Directional
Height:
0.26mm
Width:
0.6mm
Length:
1mm
Package Type:
TSLP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
28V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 2-Pin TSLP manufactured by Infineon. The manufacturer part number is ESD204B102ELE6327XTMA1. It also has 1a maximum peak pulse current. The given dimensions of the product include 1 x 0.6 x 0.26mm. The product is available in surface mount configuration. It provides a 7pf of capacitance value. The product has a maximum 50na of reverse leakage current. It has a maximum operating temperature of +150 °c. It harbours a 8.5v of minimum breakdown voltage. While is configured as bi-directional. In addition, the height is 0.26mm. Furthermore, the product is 0.6mm wide. Its accurate length is 1mm. The package is a sort of tslp. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. ESD Protected - yes. It is supplied with 28v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
ESD204-B1-02EL Bi-directional Low C TVS Diode(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
