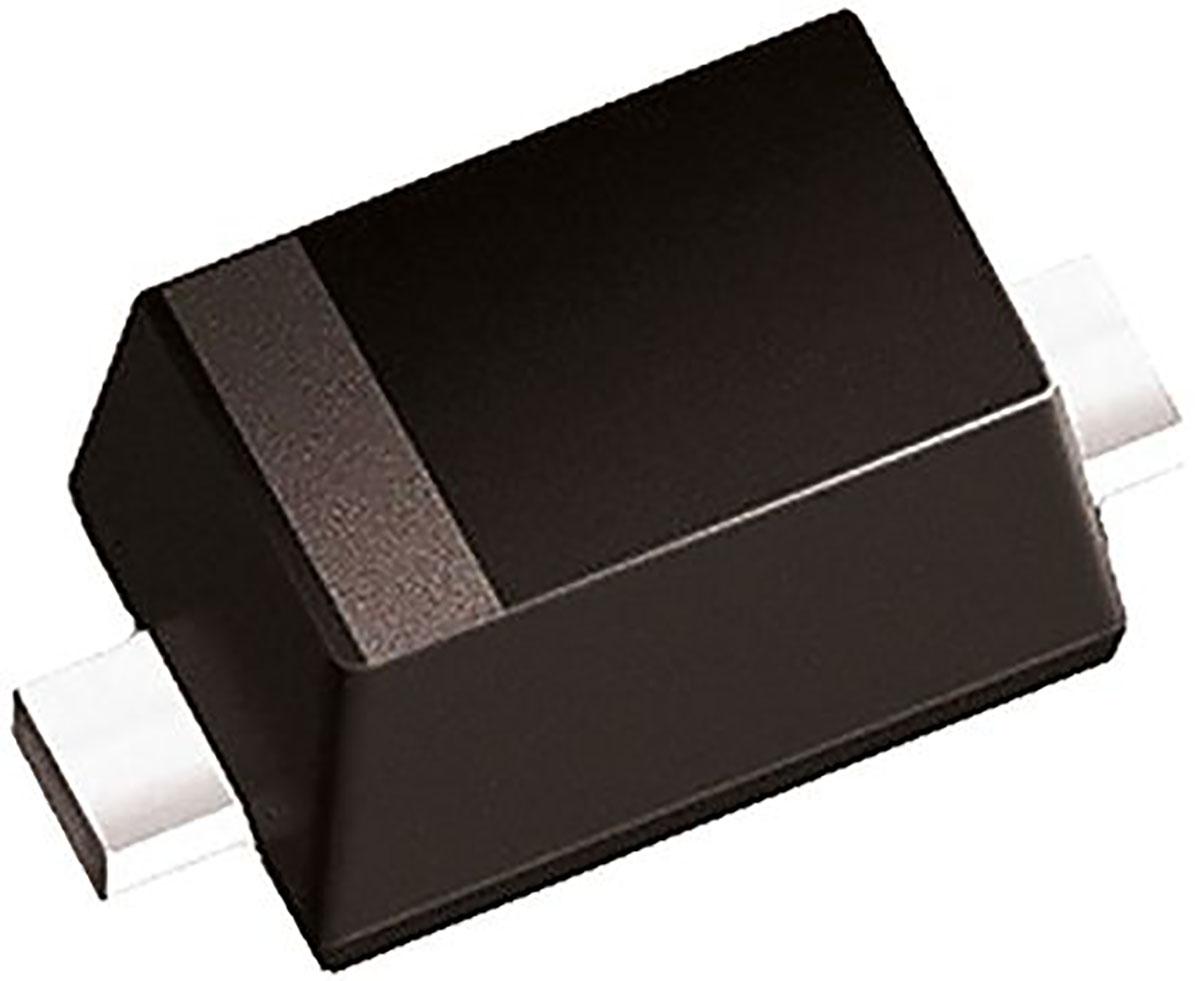

ROHM RSB5.6SMT2N, Bi-Directional ESD Protection Diode, 10W, 2-Pin SOD-523

RSB5-6SMT2N ROHM RSB5.6SMT2N, Bi-Directional ESD Protection Diode, 10W, 2-Pin SOD-523
RSB5.6SMT2N
ROHM

Product Information

Maximum Reverse Stand-off Voltage:
2.5V
Dimensions:
1.2 x 0.8 x 0.6mm
Mounting Type:
Surface Mount
Capacitance:
50pF
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Direction Type:
Bi-Directional
Peak Pulse Power Dissipation:
10W
Height:
0.6mm
Width:
0.8mm
Length:
1.2mm
Package Type:
SOD-523
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
ESD Protection:
Yes
Minimum Breakdown Voltage:
4.76V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional ESD Protection Diode 10W 2-Pin SOD-523 manufactured by ROHM. The manufacturer part number is RSB5.6SMT2N. While the maximised reverse stand-off voltage includes 2.5v. The given dimensions of the product include 1.2 x 0.8 x 0.6mm. The product is available in surface mount configuration. It provides a 50pf of capacitance value. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. While is configured as bi-directional. It has 10w of peak pulse power dissipation. In addition, the height is 0.6mm. Furthermore, the product is 0.8mm wide. Its accurate length is 1.2mm. The package is a sort of sod-523. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. ESD Protected - yes. It harbours a 4.76v of minimum breakdown voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
