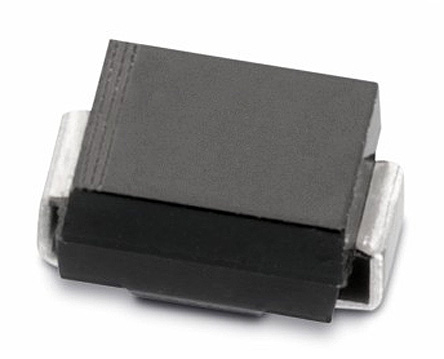

Wurth Elektronik 824521750, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA

824521750 Wurth Elektronik , Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
Wurth Elektronik

Product Information

Maximum Peak Pulse Current:
46.6A
Dimensions:
4.32 x 3.62 x 2.3mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
200µA
Minimum Breakdown Voltage:
8.77V
Peak Pulse Power Dissipation:
600W
Height:
2.3mm
Width:
3.62mm
Length:
4.32mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
12.9V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Wurth Elektronik. The manufacturer part number is 824521750. It also has 46.6a maximum peak pulse current. The given dimensions of the product include 4.32 x 3.62 x 2.3mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 200µa of reverse leakage current. It harbours a 8.77v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.3mm. Furthermore, the product is 3.62mm wide. Its accurate length is 4.32mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 12.9v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
