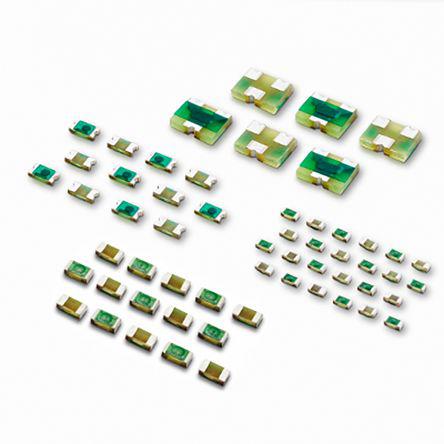

EPCOS B72500D160H60, Bi-Directional TVS Diode, 2-Pin 0603 (1608M)

B72500D160H60 EPCOS , Bi-Directional TVS Diode, 2-Pin 0603 (1608M)
B72500D160H60
B72500D160H60
ET16769597
ET16769597
EPCOS

Product Information

Maximum Peak Pulse Current:
1A
Maximum Reverse Stand-off Voltage:
16V
Dimensions:
1.75 x 0.9 x 0.9mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+85 °C
Minimum Breakdown Voltage:
150V
ESD Protection:
Yes
Height:
0.9mm
Width:
0.9mm
Length:
1.75mm
Package Type:
0603 (1608M)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
10µA
Maximum Clamping Voltage:
290V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 2-Pin 0603 (1608M) manufactured by EPCOS. The manufacturer part number is B72500D160H60. It also has 1a maximum peak pulse current. While the maximised reverse stand-off voltage includes 16v. The given dimensions of the product include 1.75 x 0.9 x 0.9mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +85 °c. It harbours a 150v of minimum breakdown voltage. ESD Protected - yes. In addition, the height is 0.9mm. Furthermore, the product is 0.9mm wide. Its accurate length is 1.75mm. The package is a sort of 0603 (1608m). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 10µa of reverse leakage current. It is supplied with 290v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search B72500D160H60 on website for other similar products.
We accept all major payment methods for all products including ET16769597. Please check your shopping cart at the time of order.
You can order EPCOS brand products with B72500D160H60 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of EPCOS B72500D160H60, Bi-Directional TVS Diode, 2-Pin 0603 (1608M). You can also check on our website or by contacting our customer support team for further order details on EPCOS B72500D160H60, Bi-Directional TVS Diode, 2-Pin 0603 (1608M).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16769597 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "EPCOS" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16769597.
Yes. We ship B72500D160H60 Internationally to many countries around the world.
