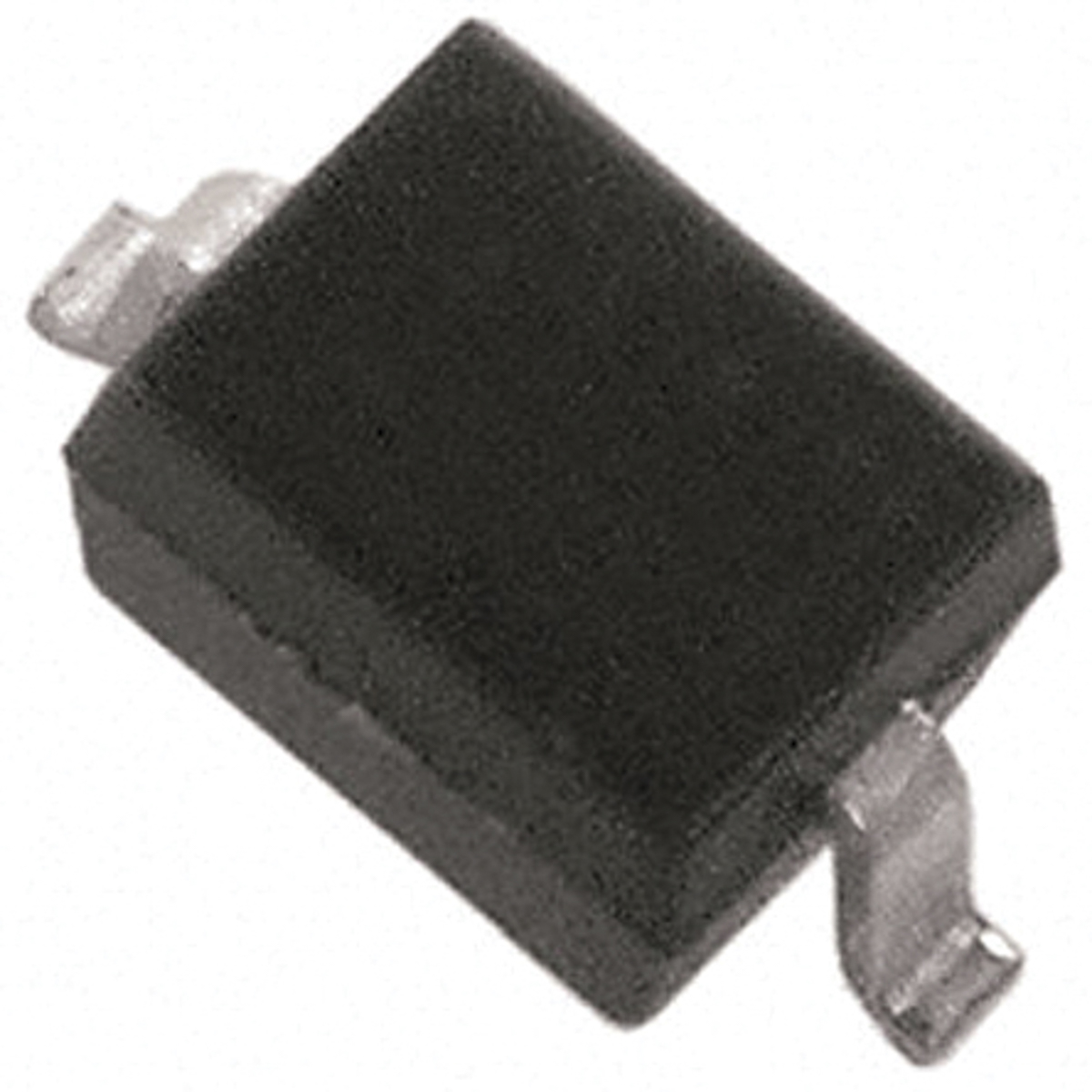

Littelfuse SP4021-01FTG, Triple Uni-Directional TVS Diode Array, 600W, 2-Pin SOD-323

SP4021-01FTG Littelfuse , Triple Uni-Directional TVS Diode Array, 600W, 2-Pin SOD-323
Littelfuse

Product Information

Dimensions:
1.9 x 1.45 x 1.04mm
Direction Type:
Uni-Directional
Capacitance:
2.5pF
Maximum Clamping Voltage:
19.6V
Diode Configuration:
Array
Test Current:
2µA
Maximum Peak Pulse Current:
25A
Minimum Breakdown Voltage:
6.3V
Maximum Reverse Leakage Current:
500nA
Package Type:
SOD-323
Number of Elements per Chip:
3
Maximum Operating Temperature:
+125 °C
ESD Protection:
Yes
Length:
1.9mm
Pin Count:
2
Peak Pulse Power Dissipation:
600W
Maximum Reverse Stand-off Voltage:
5V
Mounting Type:
Surface Mount
Width:
1.45mm
Height:
1.04mm
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is Triple Uni-Directional TVS Diode Array 600W 2-Pin SOD-323 manufactured by Littelfuse. The manufacturer part number is SP4021-01FTG. The given dimensions of the product include 1.9 x 1.45 x 1.04mm. While is configured as uni-directional. It provides a 2.5pf of capacitance value. It is supplied with 19.6v of maximum clamping voltage. The diode features a array configuration. In addition, it has 2µa test current. It also has 25a maximum peak pulse current. It harbours a 6.3v of minimum breakdown voltage. The product has a maximum 500na of reverse leakage current. The package is a sort of sod-323. It consists of 3 elements per chip. It has a maximum operating temperature of +125 °c. ESD Protected - yes. Its accurate length is 1.9mm. It contains 2 pins. It has 600w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 5v. The product is available in surface mount configuration. Furthermore, the product is 1.45mm wide. In addition, the height is 1.04mm. Whereas, the minimum operating temperature of the product is -40 °c.
