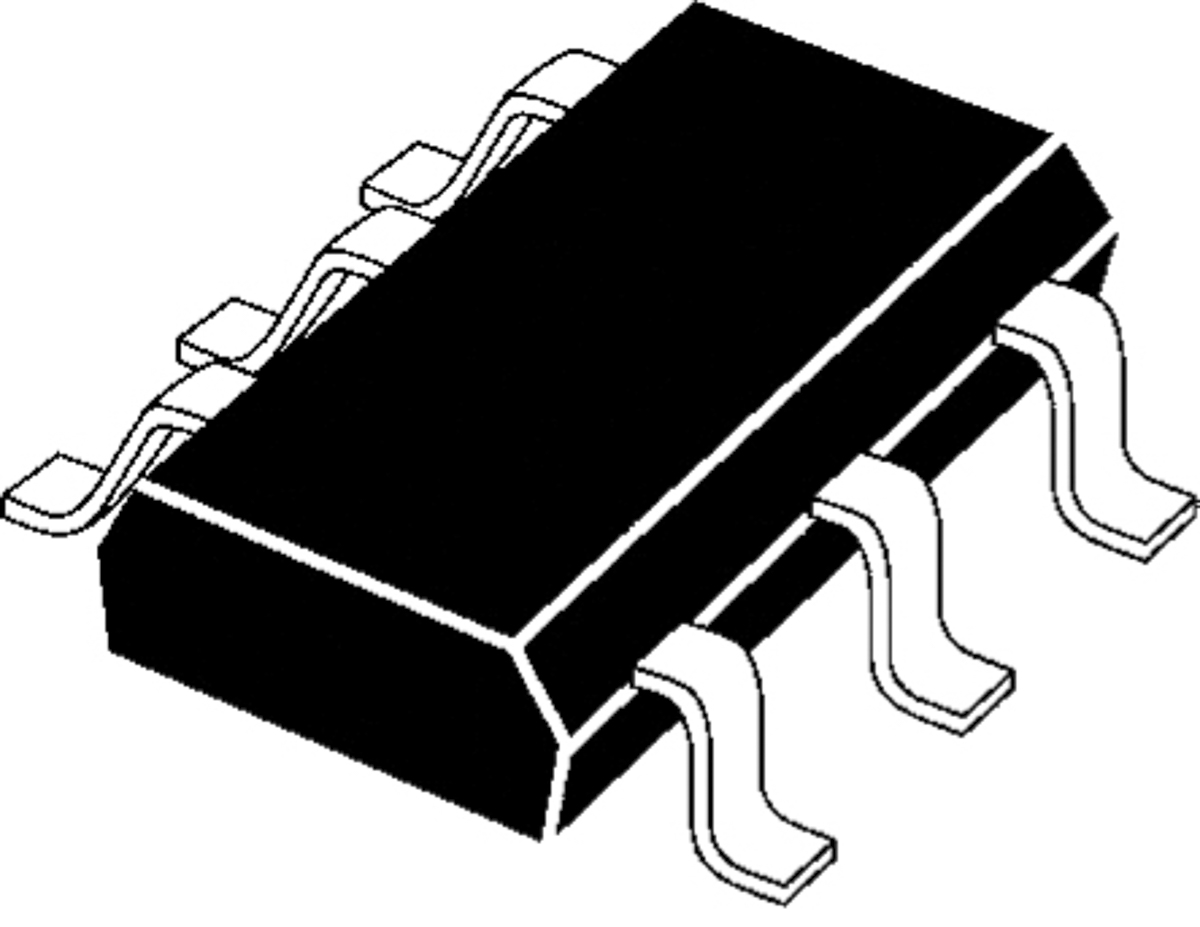

Littelfuse SP3003-04JTG, 9-Element Uni-Directional TVS Diode Array, 6-Pin SC-70

SP3003-04JTG Littelfuse , 9-Element Uni-Directional TVS Diode Array, 6-Pin SC-70
Littelfuse

Product Information

Maximum Peak Pulse Current:
2.5A
Maximum Reverse Stand-off Voltage:
6V
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Capacitance:
0.95pF
Maximum Operating Temperature:
+125 °C
Maximum Reverse Leakage Current:
500nA
Direction Type:
Uni-Directional
Height:
1mm
Width:
1.35mm
Length:
2.25mm
Package Type:
SC-70
Number of Elements per Chip:
9
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
15V
Diode Configuration:
Array
Pin Count:
6
Test Current:
≤1µA
RoHs Compliant
Checking for live stock

This is 9-Element Uni-Directional TVS Diode Array 6-Pin SC-70 manufactured by Littelfuse. The manufacturer part number is SP3003-04JTG. It also has 2.5a maximum peak pulse current. While the maximised reverse stand-off voltage includes 6v. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides a 0.95pf of capacitance value. It has a maximum operating temperature of +125 °c. The product has a maximum 500na of reverse leakage current. While is configured as uni-directional. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of sc-70. It consists of 9 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. It is supplied with 15v of maximum clamping voltage. The diode features a array configuration. It contains 6 pins. In addition, it has ≤1µa test current.
