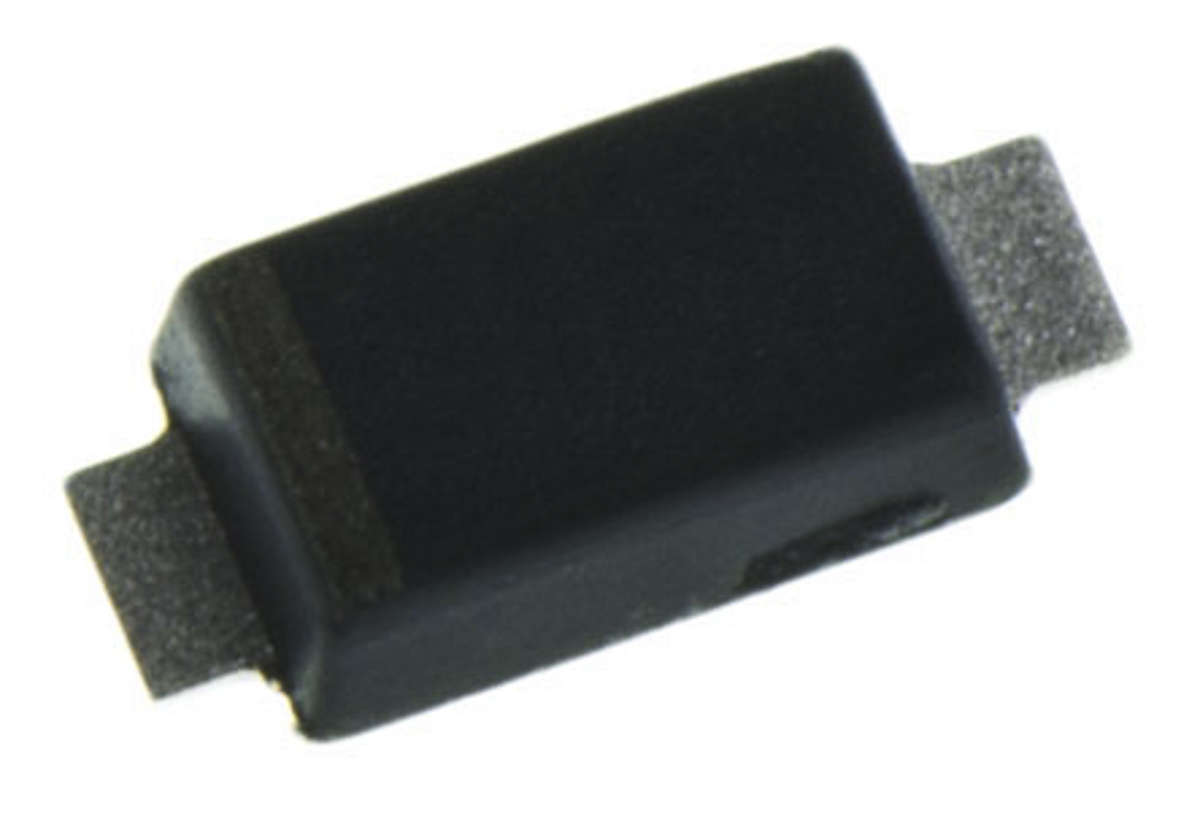

Littelfuse SMF12A, Uni-Directional TVS Diode, 200W, 2-Pin SOD-123FL

SMF12A Littelfuse , Uni-Directional TVS Diode, 200W, 2-Pin SOD-123FL
Littelfuse

Product Information

Dimensions:
2.9 x 2 x 1mm
Direction Type:
Uni-Directional
Width:
2mm
Maximum Clamping Voltage:
19.9V
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
10.1A
Minimum Breakdown Voltage:
13.3V
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
2.5µA
Package Type:
SOD-123FL
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
2.9mm
Pin Count:
2
Peak Pulse Power Dissipation:
200W
Maximum Reverse Stand-off Voltage:
12V
Mounting Type:
Surface Mount
Height:
1mm
Minimum Operating Temperature:
-65 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 200W 2-Pin SOD-123FL manufactured by Littelfuse. The manufacturer part number is SMF12A. The given dimensions of the product include 2.9 x 2 x 1mm. While is configured as uni-directional. Furthermore, the product is 2mm wide. It is supplied with 19.9v of maximum clamping voltage. The diode features a single configuration. In addition, it has 1ma test current. It also has 10.1a maximum peak pulse current. It harbours a 13.3v of minimum breakdown voltage. Moreover, it has about 30kv ESD voltage . The product has a maximum 2.5µa of reverse leakage current. The package is a sort of sod-123fl. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 2.9mm. It contains 2 pins. It has 200w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 12v. The product is available in surface mount configuration. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -65 °c.
