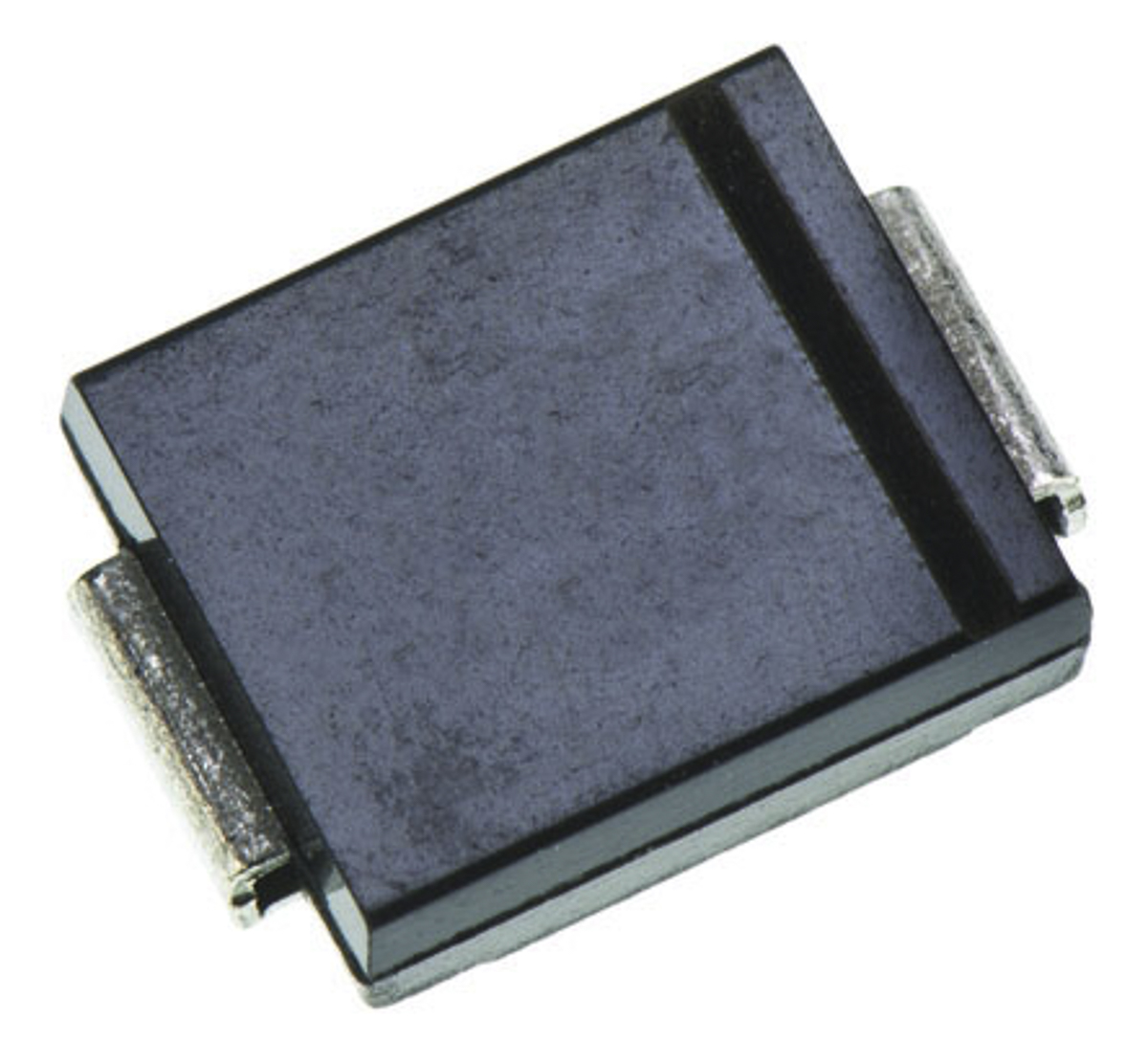

Littelfuse SMDJ5.0CA, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB

SMDJ5-0CA Littelfuse SMDJ5.0CA, Bi-Directional TVS Diode, 3000W, 2-Pin DO-214AB
Littelfuse

Product Information

Dimensions:
7.11 x 6.22 x 2.41mm
Direction Type:
Bi-Directional
Width:
6.22mm
Maximum Clamping Voltage:
9.2V
Diode Configuration:
Single
Test Current:
10mA
Maximum Peak Pulse Current:
326.1A
Minimum Breakdown Voltage:
6.4V
Surge Current Rating:
300A
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
800µA
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
7.11mm
Pin Count:
2
Peak Pulse Power Dissipation:
3000W
Maximum Reverse Stand-off Voltage:
5V
Mounting Type:
Surface Mount
Height:
2.41mm
Minimum Operating Temperature:
-65 °C
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 3000W 2-Pin DO-214AB manufactured by Littelfuse. The manufacturer part number is SMDJ5.0CA. The given dimensions of the product include 7.11 x 6.22 x 2.41mm. While is configured as bi-directional. Furthermore, the product is 6.22mm wide. It is supplied with 9.2v of maximum clamping voltage. The diode features a single configuration. In addition, it has 10ma test current. It also has 326.1a maximum peak pulse current. It harbours a 6.4v of minimum breakdown voltage. It has about 300a surge current rating . Moreover, it has about 30kv ESD voltage . The product has a maximum 800µa of reverse leakage current. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 7.11mm. It contains 2 pins. It has 3000w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 5v. The product is available in surface mount configuration. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -65 °c.
