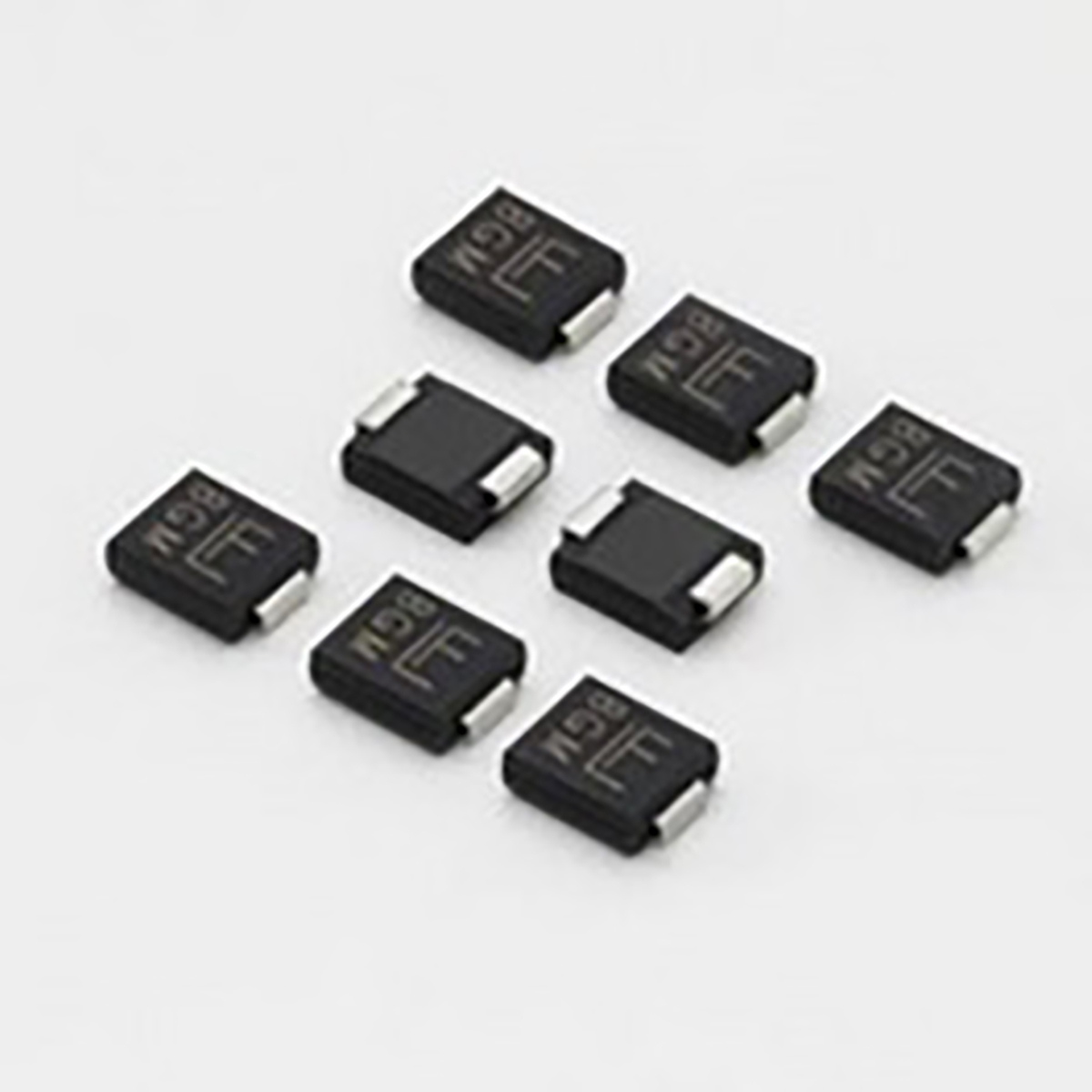

Littelfuse SMCJ12CA, Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB

SMCJ12CA Littelfuse , Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB
Littelfuse

Product Information

Dimensions:
7.11 x 6.22 x 2.41mm
Direction Type:
Bi-Directional
Width:
6.22mm
Maximum Clamping Voltage:
19.9V
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
75.4A
Minimum Breakdown Voltage:
13.3V
Surge Current Rating:
200A
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
1µA
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
7.11mm
Pin Count:
2
Peak Pulse Power Dissipation:
1500W
Maximum Reverse Stand-off Voltage:
12V
Mounting Type:
Surface Mount
Height:
2.41mm
Minimum Operating Temperature:
-65 °C
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode 1500W 2-Pin DO-214AB manufactured by Littelfuse. The manufacturer part number is SMCJ12CA. The given dimensions of the product include 7.11 x 6.22 x 2.41mm. While is configured as bi-directional. Furthermore, the product is 6.22mm wide. It is supplied with 19.9v of maximum clamping voltage. The diode features a single configuration. In addition, it has 1ma test current. It also has 75.4a maximum peak pulse current. It harbours a 13.3v of minimum breakdown voltage. It has about 200a surge current rating . Moreover, it has about 30kv ESD voltage . The product has a maximum 1µa of reverse leakage current. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 7.11mm. It contains 2 pins. It has 1500w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 12v. The product is available in surface mount configuration. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -65 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SMCJ12CA on website for other similar products.
We accept all major payment methods for all products including ET16762456. Please check your shopping cart at the time of order.
You can order Littelfuse brand products with SMCJ12CA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Littelfuse SMCJ12CA, Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB. You can also check on our website or by contacting our customer support team for further order details on Littelfuse SMCJ12CA, Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16762456 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Littelfuse" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16762456.
Yes. We ship SMCJ12CA Internationally to many countries around the world.
