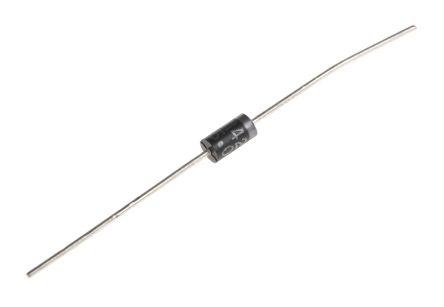

Littelfuse SA15ARLG, Uni-Directional TVS Diode, 500W, 2-Pin Case 59AA

SA15ARLG Littelfuse , Uni-Directional TVS Diode, 500W, 2-Pin Case 59AA
SA15ARLG
SA15ARLG
ET16762400
ET16762400
TVS Diodes
Littelfuse

Product Information

Diameter:
3.6mm
Maximum Reverse Stand-off Voltage:
15V
Dimensions:
3.6 (Dia.) x 7.6mm
Mounting Type:
Through Hole
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
ESD Protection:
Yes
Peak Pulse Power Dissipation:
500W
Maximum Peak Pulse Current:
20.6A
Height:
7.6mm
Minimum Breakdown Voltage:
16.7V
Package Type:
Case 59AA
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
24.4V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 500W 2-Pin Case 59AA manufactured by Littelfuse. The manufacturer part number is SA15ARLG. Its diameter is 3.6mm. While the maximised reverse stand-off voltage includes 15v. The given dimensions of the product include 3.6 (dia.) x 7.6mm. The product is available in through hole configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. ESD Protected - yes. It has 500w of peak pulse power dissipation. It also has 20.6a maximum peak pulse current. In addition, the height is 7.6mm. It harbours a 16.7v of minimum breakdown voltage. The package is a sort of case 59aa. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 24.4v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
PCN - Littelfuse Acquisition of ON Semiconductor TVS Diode, Thyristor and Ignition IGBT Portfolio(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
SA5.0A Series, 500 Watt Peak Power MiniMOSORB Zener Transient Voltage Suppressors(Technical Reference)
