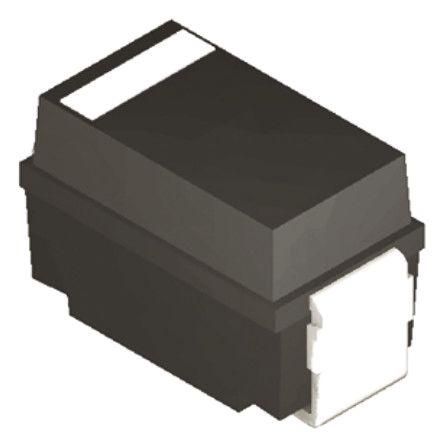

Diodes Inc SMAJ36CA-13-F, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC

SMAJ36CA-13-F Diodes Inc , Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC
DiodesZetex

Product Information

Maximum Peak Pulse Current:
6.9A
Maximum Reverse Stand-off Voltage:
36V
Dimensions:
4.6 x 2.92 x 2.1mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
40V
Peak Pulse Power Dissipation:
400W
Height:
2.1mm
Width:
2.92mm
Length:
4.6mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
58.1V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Bi-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by DiodesZetex. The manufacturer part number is SMAJ36CA-13-F. It also has 6.9a maximum peak pulse current. While the maximised reverse stand-off voltage includes 36v. The given dimensions of the product include 4.6 x 2.92 x 2.1mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 40v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 2.1mm. Furthermore, the product is 2.92mm wide. Its accurate length is 4.6mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 58.1v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SMAJ36CA-13-F on website for other similar products.
We accept all major payment methods for all products including ET16759859. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with SMAJ36CA-13-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc SMAJ36CA-13-F, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc SMAJ36CA-13-F, Bi-Directional TVS Diode, 400W, 2-Pin DO-214AC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16759859 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16759859.
Yes. We ship SMAJ36CA-13-F Internationally to many countries around the world.
