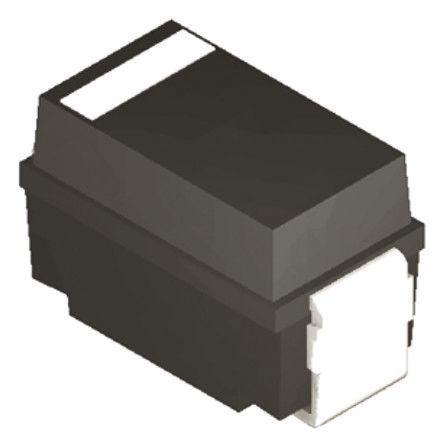

Diodes Inc SMAJ36A-13-F, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

SMAJ36A-13-F Diodes Inc , Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC
DiodesZetex

Product Information

Maximum Peak Pulse Current:
6.9A
Maximum Reverse Stand-off Voltage:
36V
Dimensions:
4.6 x 2.92 x 2.1mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
40V
Peak Pulse Power Dissipation:
400W
Height:
2.1mm
Width:
2.92mm
Length:
4.6mm
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
58.1V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Uni-Directional TVS Diode 400W 2-Pin DO-214AC manufactured by DiodesZetex. The manufacturer part number is SMAJ36A-13-F. It also has 6.9a maximum peak pulse current. While the maximised reverse stand-off voltage includes 36v. The given dimensions of the product include 4.6 x 2.92 x 2.1mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 40v of minimum breakdown voltage. It has 400w of peak pulse power dissipation. In addition, the height is 2.1mm. Furthermore, the product is 2.92mm wide. Its accurate length is 4.6mm. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 58.1v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
