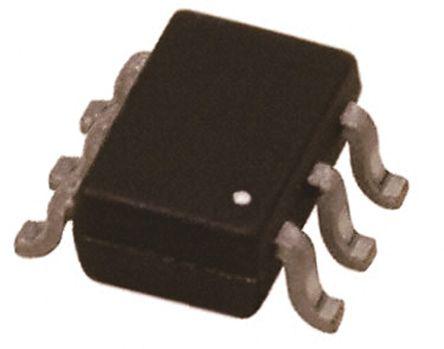

Diodes Inc DT2042-04SO-7, 9-Element Uni-Directional TVS Diode Array, 55W, 6-Pin SOT-26

DT2042-04SO-7 Diodes Inc , 9-Element Uni-Directional TVS Diode Array, 55W, 6-Pin SOT-26
DiodesZetex

Product Information

Dimensions:
3.1 x 1.7 x 1.3mm
Direction Type:
Uni-Directional
Capacitance:
0.8pF
Maximum Clamping Voltage:
7.5V
Diode Configuration:
Array
Test Current:
1mA
Maximum Peak Pulse Current:
±10A
Minimum Breakdown Voltage:
6V
Maximum Reverse Leakage Current:
1µA
Package Type:
SOT-26
Number of Elements per Chip:
9
Maximum Operating Temperature:
+85 °C
ESD Protection:
Yes
Length:
3.1mm
Pin Count:
6
Peak Pulse Power Dissipation:
55W
Maximum Reverse Stand-off Voltage:
5.5V
Mounting Type:
Surface Mount
Width:
1.7mm
Height:
1.3mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Diodes Inc 9-Element Uni-Directional TVS Diode Array 55W 6-Pin SOT-26 manufactured by DiodesZetex. The manufacturer part number is DT2042-04SO-7. The given dimensions of the product include 3.1 x 1.7 x 1.3mm. While is configured as uni-directional. It provides a 0.8pf of capacitance value. It is supplied with 7.5v of maximum clamping voltage. The diode features a array configuration. In addition, it has 1ma test current. It also has ±10a maximum peak pulse current. It harbours a 6v of minimum breakdown voltage. The product has a maximum 1µa of reverse leakage current. The package is a sort of sot-26. It consists of 9 elements per chip. It has a maximum operating temperature of +85 °c. ESD Protected - yes. Its accurate length is 3.1mm. It contains 6 pins. It has 55w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 5.5v. The product is available in surface mount configuration. Furthermore, the product is 1.7mm wide. In addition, the height is 1.3mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
DT2042-04SO 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
